333001Series 33
364300Representative image of the familyDrawing dimensions
- DDiameter
- 30 mm
- FWidth
- 18 mm
- HOverall height
- 47.5 mm
- A×BTop plate (outside)
- 42 × 42 mm
- AA×BBBolt hole spacing
- 31 × 31 mm
- EEBolt hole diameter
- 5 mm
- ESwivel offset
- 14.5 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

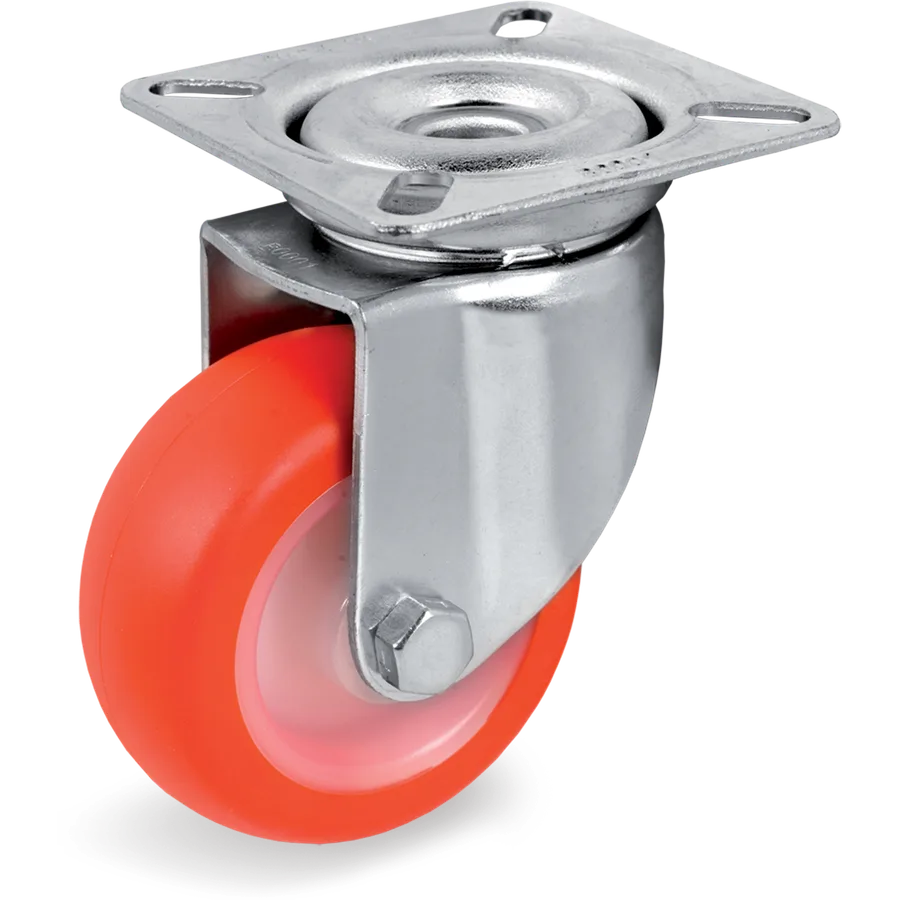

Thermoplastic polyurethane swivel castor Ø30×18 mm
Injected polyurethane castors, polyamide 6 centre, for catering
Tellure description: 36 30X18 CB SRP S1.0
- Diameter (D)
- Ø 30mm
- Width (F)
- 18mm
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 364300
- Series
- Tellure Rôta 36
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 30 mm
- Width (F)
- 18 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 47.5 mm
- Top plate (A × B)
- 42 × 42 mm
- Bolt hole spacing (AA × BB)
- 31 × 31 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
