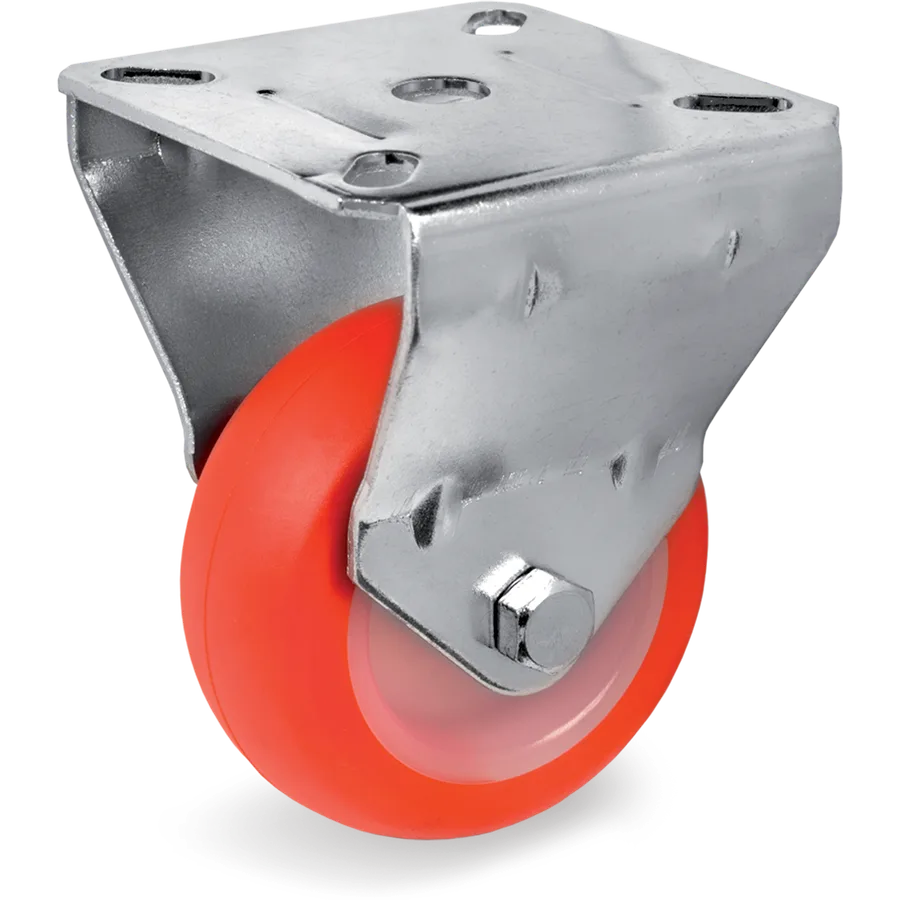

365104NXSeries 36NXThermoplastic polyurethane fixed castor Ø75×23 mm
Injected polyurethane castors with stainless steel bracket
Load: on request
365104Representative image of the familyDrawing dimensions
- DDiameter
- 75 mm
- FWidth
- 23 mm
- HOverall height
- 101 mm
- A×BTop plate (outside)
- 60 × 67 mm
- AA×BBBolt hole spacing
- 45 × 45 mm
- EEBolt hole diameter
- 6 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Thermoplastic polyurethane fixed castor Ø75×23 mm
Injected polyurethane castors, polyamide 6 centre, for catering
Tellure description: 36 75X23 CB SF S3.F
- Diameter (D)
- Ø 75mm
- Width (F)
- 23mm
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 365104
- Series
- Tellure Rôta 36
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 75 mm
- Width (F)
- 23 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 101 mm
- Top plate (A × B)
- 60 × 67 mm
- Bolt hole spacing (AA × BB)
- 45 × 45 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
