342103Series 34GRYPolyamide 6 swivel castor Ø60×42 mm with brake
Twin polyamide 6 furniture castors, grey
Load: on request
367103NXRepresentative image of the familyDrawing dimensions
- DDiameter
- 60 mm
- FWidth
- 25 mm
- HOverall height
- 83 mm
- GPlate diameter
- 41 mm
- GGThrough-hole diameter
- 12 mm
- ESwivel offset
- 22 mm
- OBrake swing radius
- 84 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

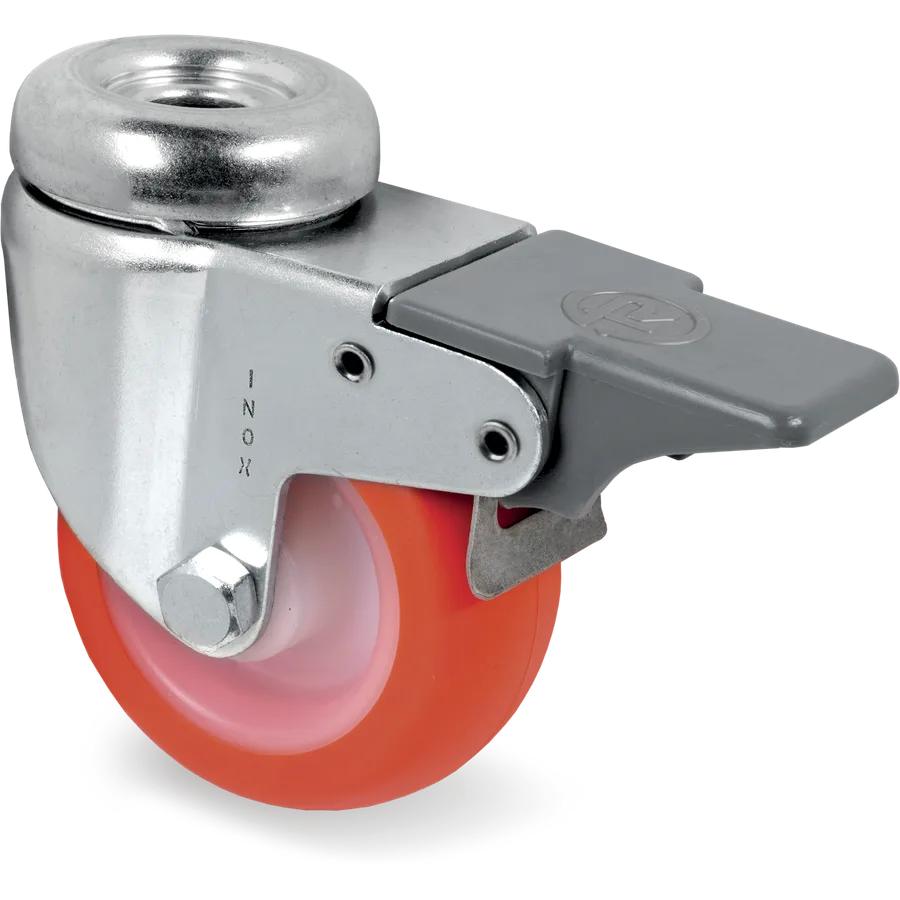

Thermoplastic polyurethane swivel castor Ø60×25 mm with brake
Injected polyurethane castors with stainless steel bracket
Tellure description: 36NX 60X25 CB SRF 12+FA
- Diameter (D)
- Ø 60mm
- Width (F)
- 25mm
- Tread
- Thermoplastic polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 367103NX
- Series
- Tellure Rôta 36NX
- Tread
- Thermoplastic polyurethane
- Diameter (D)
- 60 mm
- Width (F)
- 25 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 83 mm
- Fitting
- Bolt hole
- Bracket material
- Stainless steel
- Brake
- Yes
- Brake type
- Front brake
