324003Series 32

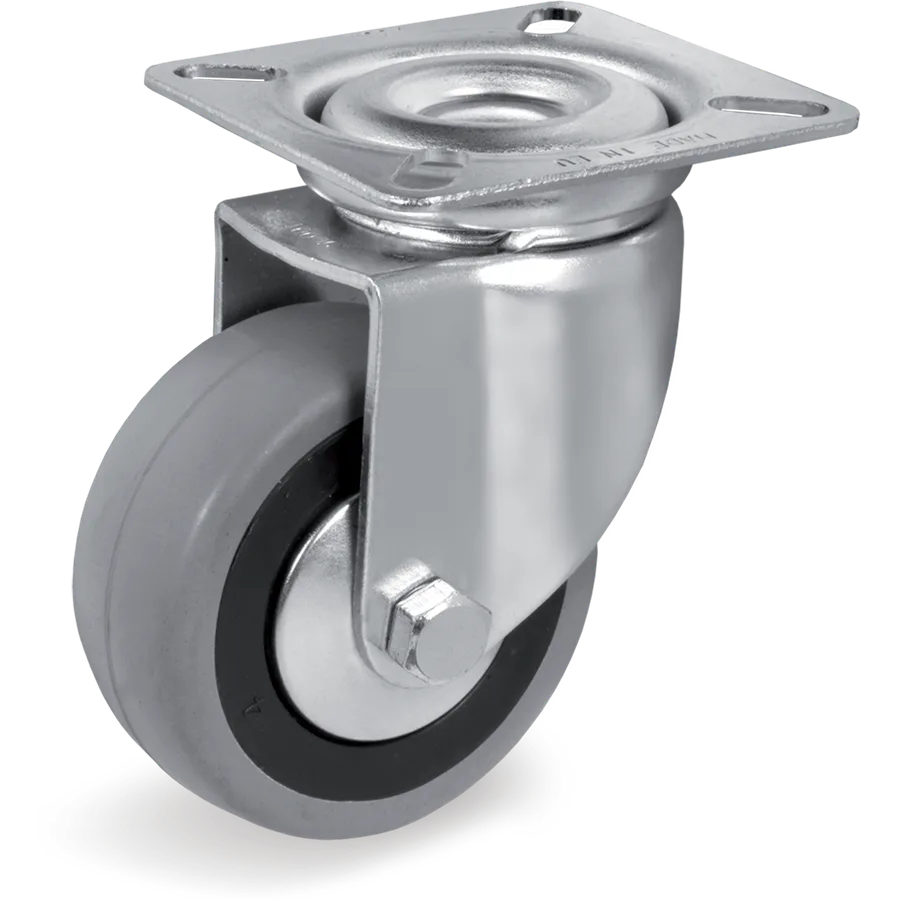

374102Representative image of the familyRubber swivel castor Ø60×24 mm
Ruedas en goma, núcleo en poliamida con pletina antihilos, soporte giratorio pletina
Tellure description: 37 60X24 CB SRP S3.0
- Diameter (D)
- Ø 60mm
- Width (F)
- 24mm
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 374102
- Series
- Tellure Rôta 37
- Tread
- Rubber
- Diameter (D)
- 60 mm
- Width (F)
- 24 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas en goma, núcleo en poliamida con pletina antihilos, soporte giratorio pletina
9 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 374100 | Ø40×18 mm | — | C/B | No | 37 40X18 CB SRP S1.0 |
| 374001 | Ø50×18 mm | — | C/B | No | 37 50X18 CB SRP S2.0 CONFEZ 2PZ |
| 374101 | Ø50×18 mm | — | C/B | No | 37 50X18 CB SRP S2.0 |
| 374002 | Ø60×24 mm | — | C/B | No | 37 60X24 CB SRP S3.0 CONFEZ 2PZ |
| 374102 | Ø60×24 mm | — | C/B | No | This article |
| 374303 | Ø75×24 mm | — | C/B | No | 37 75X24 CB SRP S3.0 |
| 374103 | Ø80×24 mm | — | C/B | No | 37 80X24 CB SRP S3.0 |
| 374104 | Ø100×24 mm | — | C/B | No | 37 100X24 CB SRP S3.0 |
| 374105 | Ø125×30 mm | — | C/B | No | 37 125X30 CB SRP R7.0 |
