323202Series 32Polyamide 6 swivel castor Ø50 mm
Polyamide 6 castors for catering and light equipment
Load: on request
374201Representative image of the familyDrawing dimensions
- DDiameter
- 50 mm
- FWidth
- 18 + 18 mm
- HOverall height
- 71 mm
- A×BTop plate (outside)
- 60 × 60 mm
- AA×BBBolt hole spacing
- 45 × 45 mm
- EEBolt hole diameter
- 6 mm
- ESwivel offset
- 31 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

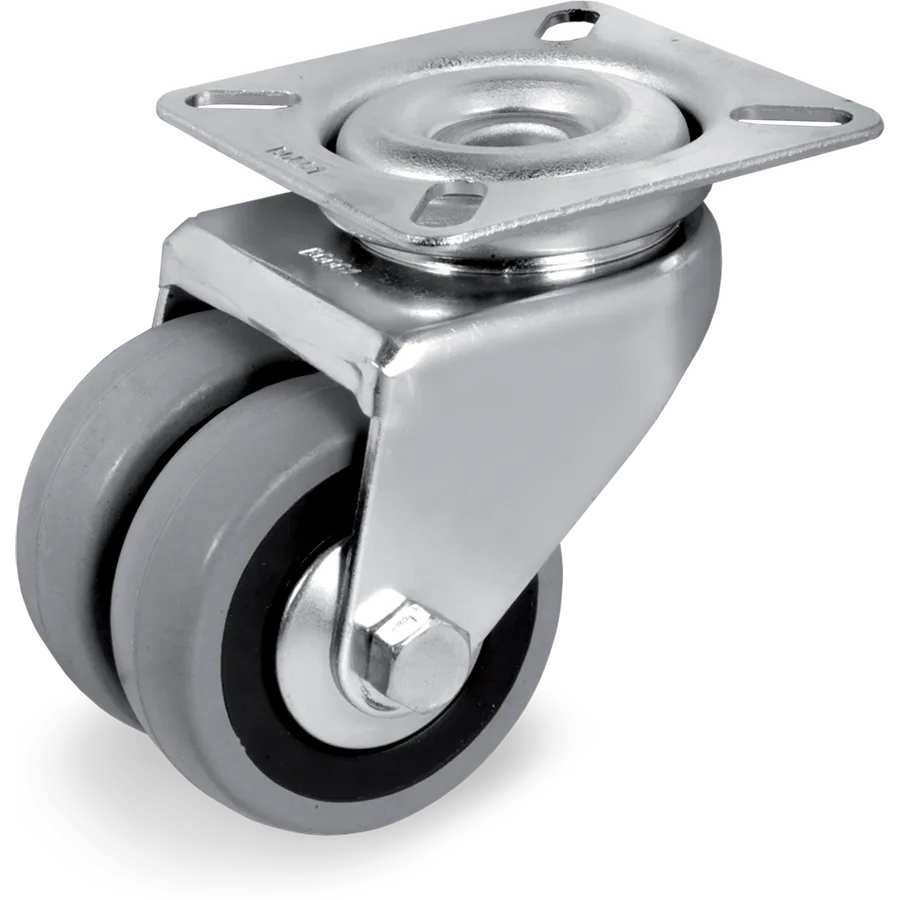

Rubber swivel castor Ø50 mm
Rubber castors, polypropylene centre with thread guard
Tellure description: 37 50X18+18 CB SRP S3.0
- Diameter (D)
- Ø 50mm
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 374201
- Series
- Tellure Rôta 37
- Tread
- Rubber
- Diameter (D)
- 50 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 71 mm
- Top plate (A × B)
- 60 × 60 mm
- Bolt hole spacing (AA × BB)
- 45 × 45 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Rubber castors, polypropylene centre with thread guard
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 374201 | Ø50 mm | — | C/B | No | This article |
| 374203 | Ø75 mm | — | C/B | No | 37 75X24+24 CB SRP S3.0 |
