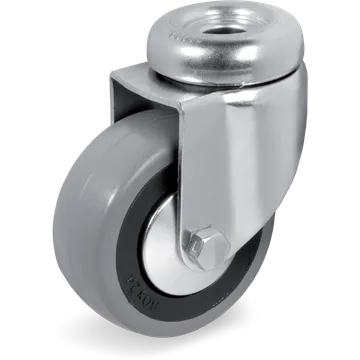

373105Series 37Rubber swivel castor Ø125×30 mm
Rubber castors, polypropylene centre with thread guard
Load: on request
375105Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 30 mm
- HOverall height
- 152 mm
- A×BTop plate (outside)
- 77 × 67 mm
- AA×BBBolt hole spacing
- 55 × 45 mm
- EEBolt hole diameter
- 8 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
Rubber fixed castor Ø125×30 mm
Rubber castors, polypropylene centre with thread guard
Tellure description: 37 125X30 CB SF R7.0
- Diameter (D)
- Ø 125mm
- Width (F)
- 30mm
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 375105
- Series
- Tellure Rôta 37
- Tread
- Rubber
- Diameter (D)
- 125 mm
- Width (F)
- 30 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 152 mm
- Top plate (A × B)
- 77 × 67 mm
- Bolt hole spacing (AA × BB)
- 55 × 45 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Rubber castors, polypropylene centre with thread guard
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 375100 | Ø40×18 mm | — | C/B | No | 37 40X18 CB SF S1.F |
| 375101 | Ø50×18 mm | — | C/B | No | 37 50X18 CB SF S2.0 |
| 375102 | Ø60×24 mm | — | C/B | No | 37 60X24 CB SF S3.F |
| 375303 | Ø75×24 mm | — | C/B | No | 37 75X24 CB SF S3.F |
| 375103 | Ø80×24 mm | — | C/B | No | 37 80X24 CB SF S3.F |
| 375104 | Ø100×24 mm | — | C/B | No | 37 100X24 CB SF S3.F |
| 375105 | Ø125×30 mm | — | C/B | No | This article |
