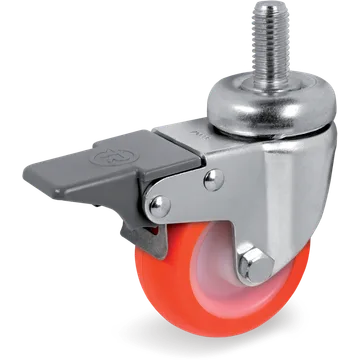

367101Series 36Thermoplastic polyurethane swivel castor Ø40×18 mm with brake
Injected polyurethane castors, polyamide 6 centre, for catering
Load: on request
379100Representative image of the familyDrawing dimensions
- DDiameter
- 40 mm
- FWidth
- 18 mm
- HOverall height
- 59 mm
- GPlate diameter
- 35 mm
- TNut thread
- M8
- FSBolt length
- 15 mm
- ESwivel offset
- 24 mm
- OBrake swing radius
- 78 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

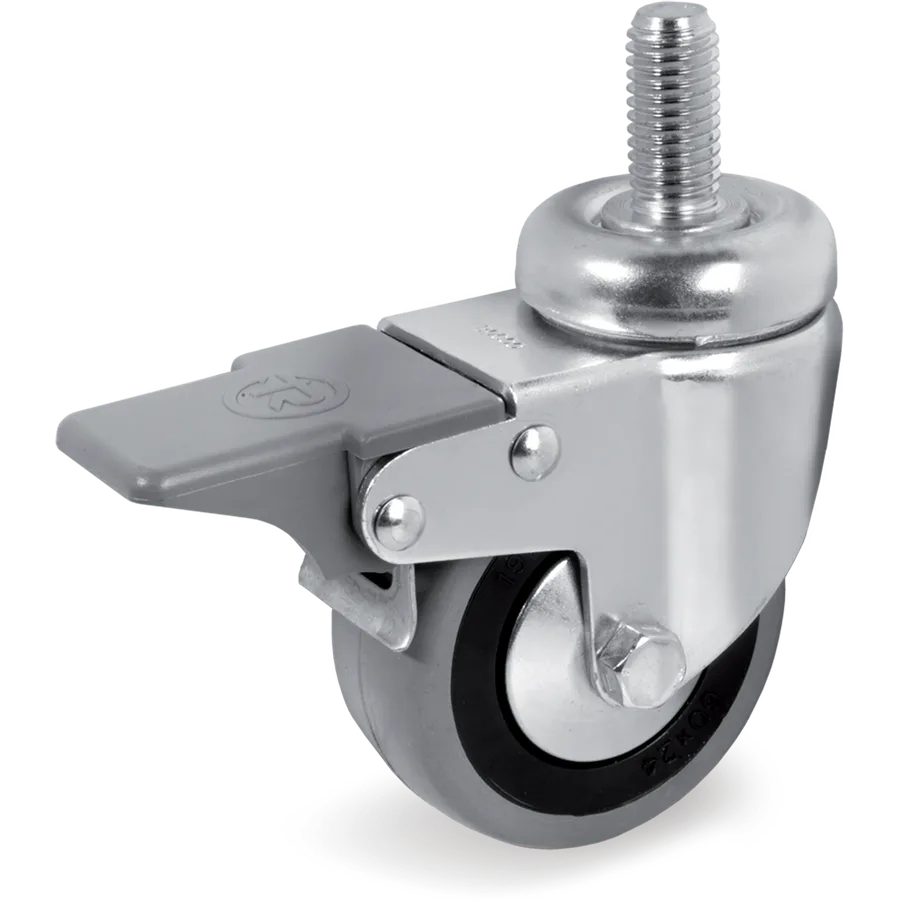

Rubber swivel castor Ø40×18 mm with brake
Rubber castors, polypropylene centre with thread guard
Tellure description: 37 40X18 CB SRC/FIL M8X15+FA
- Diameter (D)
- Ø 40mm
- Width (F)
- 18mm
- Tread
- Rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 379100
- Series
- Tellure Rôta 37
- Tread
- Rubber
- Diameter (D)
- 40 mm
- Width (F)
- 18 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 59 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Rubber castors, polypropylene centre with thread guard
10 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 379100 | Ø40×18 mm | — | C/B | Yes | This article |
| 379400 | Ø40×18 mm | — | C/B | Yes | 37 40X18 CB SRC/FIL M10X20+FA |
| 379101 | Ø50×18 mm | — | C/B | Yes | 37 50X18 CB SRC/FIL M8X15+FA |
| 379401 | Ø50×18 mm | — | C/B | Yes | 37 50X18 CB SRC/FIL M10X20+FA |
| 379102 | Ø60×24 mm | — | C/B | Yes | 37 60X24 CB SRC/FIL M12X25+FA |
| 379402 | Ø60×24 mm | — | C/B | Yes | 37 60X24 CB SRC/FIL M10X20+FA |
| 379303 | Ø75×24 mm | — | C/B | Yes | 37 75X24 CB SRC/FIL M12X25+FA |
| 379103 | Ø80×24 mm | — | C/B | Yes | 37 80X24 CB SRC/FIL M12X25+FA |
| 379104 | Ø100×24 mm | — | C/B | Yes | 37 100X24 CB SRC/FIL M12X25+FA |
| 379105 | Ø125×30 mm | — | C/B | Yes | 37 125X30 CB SRC/FIL M12X25+FA |
