324001Series 32Polyamide 6 swivel castor Ø40×17 mm
Polyamide 6 castors for catering and light equipment
Load: on request
384200Representative image of the familyDrawing dimensions
- DDiameter
- 40 mm
- FWidth
- 18 mm
- HOverall height
- 59 mm
- A×BTop plate (outside)
- 42 × 42 mm
- AA×BBBolt hole spacing
- 31 × 31 mm
- EEBolt hole diameter
- 5 mm
- ESwivel offset
- 24 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

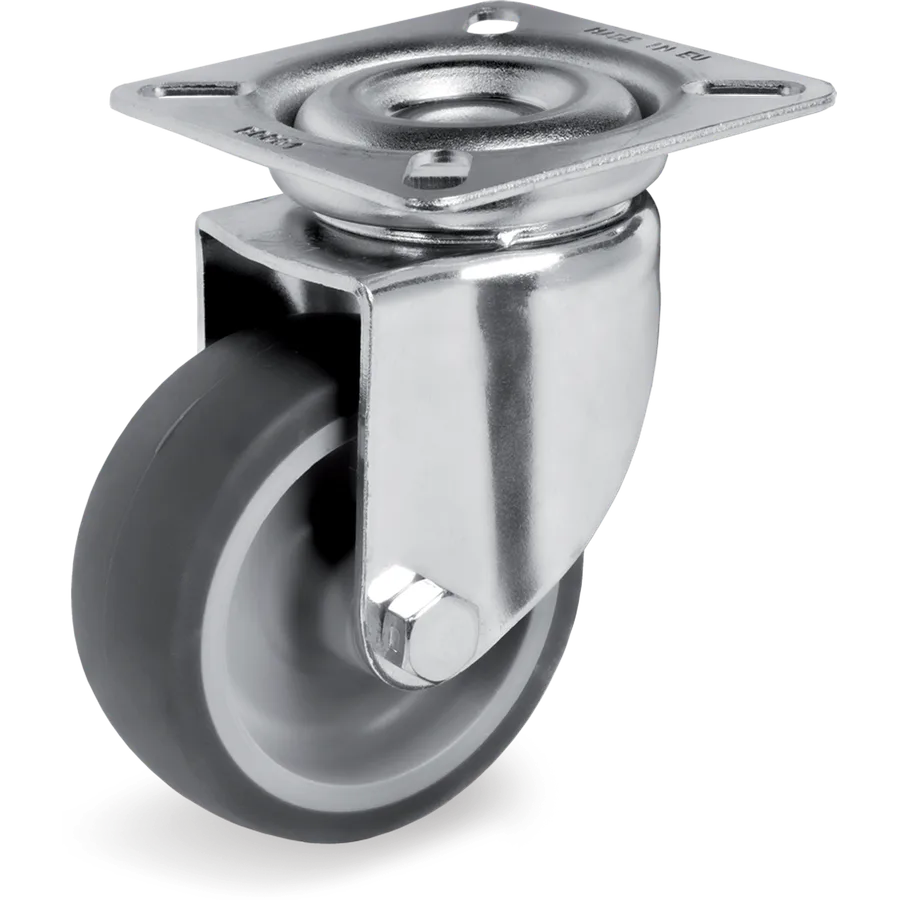

Thermoplastic rubber swivel castor Ø40×18 mm
Thermoplastic rubber castors, polypropylene centre, for catering
Tellure description: 38 40X18 CB SRP S1.0
- Diameter (D)
- Ø 40mm
- Width (F)
- 18mm
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 384200
- Series
- Tellure Rôta 38
- Tread
- Thermoplastic rubber
- Diameter (D)
- 40 mm
- Width (F)
- 18 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 59 mm
- Top plate (A × B)
- 42 × 42 mm
- Bolt hole spacing (AA × BB)
- 31 × 31 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
