323202Series 32Polyamide 6 swivel castor Ø50 mm
Polyamide 6 castors for catering and light equipment
Load: on request
389302Representative image of the familyDrawing dimensions
- DDiameter
- 50 mm
- FWidth
- 18 + 18 mm
- HOverall height
- 71 mm
- GPlate diameter
- 41 mm
- TNut thread
- M10
- FSBolt length
- 15 mm
- ESwivel offset
- 31 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

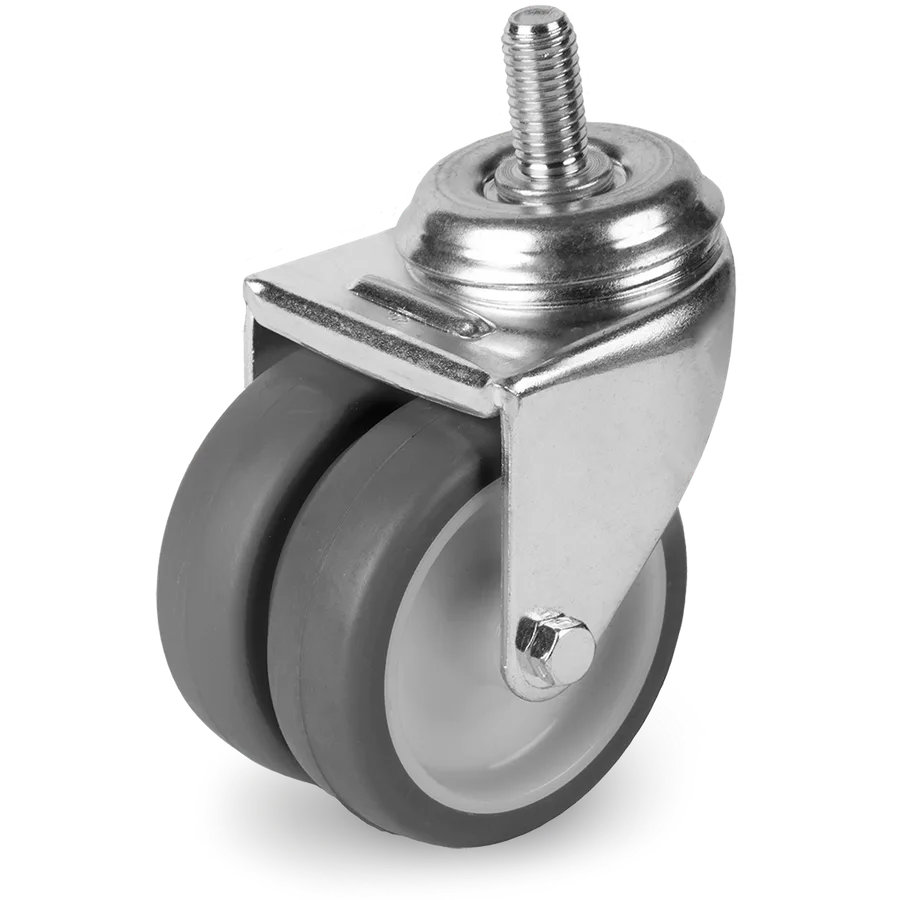

Thermoplastic rubber swivel castor Ø50 mm
Thermoplastic rubber castors, polypropylene centre, for catering
Tellure description: 38 50X18+18 CB SRC/FIL M10X15
- Diameter (D)
- Ø 50mm
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 389302
- Series
- Tellure Rôta 38
- Tread
- Thermoplastic rubber
- Diameter (D)
- 50 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 71 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Thermoplastic rubber castors, polypropylene centre, for catering
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 389302 | Ø50 mm | — | C/B | No | This article |
| 389314 | Ø75 mm | — | C/B | No | 38 75X23+23 CB SRC/FIL M12X25 |
