342104Series 34GRYPolyamide 6 swivel castor Ø75×48 mm with brake
Twin polyamide 6 furniture castors, grey
Load: on request
389414Representative image of the familyDrawing dimensions
- DDiameter
- 75 mm
- FWidth
- 23 + 23 mm
- HOverall height
- 99 mm
- GPlate diameter
- 52 mm
- TNut thread
- M12
- FSBolt length
- 25 mm
- ESwivel offset
- 33 mm
- OBrake swing radius
- 98 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

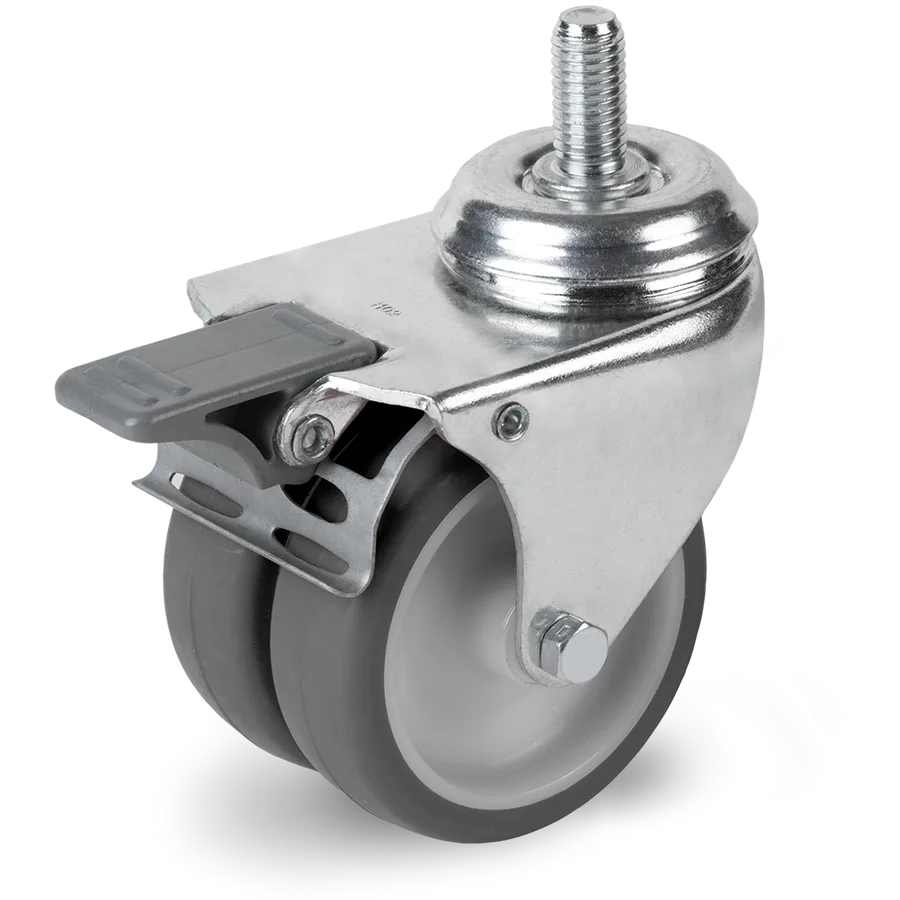

Thermoplastic rubber swivel castor Ø75 mm with brake
Thermoplastic rubber castors, polypropylene centre, for catering
Tellure description: 38 75X23+23 CB SRC/FIL M12X25+FA
- Diameter (D)
- Ø 75mm
- Tread
- Thermoplastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 389414
- Series
- Tellure Rôta 38
- Tread
- Thermoplastic rubber
- Diameter (D)
- 75 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 99 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Thermoplastic rubber castors, polypropylene centre, for catering
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 389412 | Ø50 mm | — | C/B | Yes | 38 50X18+18 CB SRC/FIL M10X15+FA |
| 389414 | Ø75 mm | — | C/B | Yes | This article |
