342204Series 34GRY
392004Representative image of the familyDrawing dimensions
- DDiameter
- 75 mm
- FWidth
- 23 mm
- HOverall height
- 103 mm
- A×BTop plate (outside)
- 60 × 60 mm
- AA×BBBolt hole spacing
- 43 × 43 mm
- EEBolt hole diameter
- 6.5 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

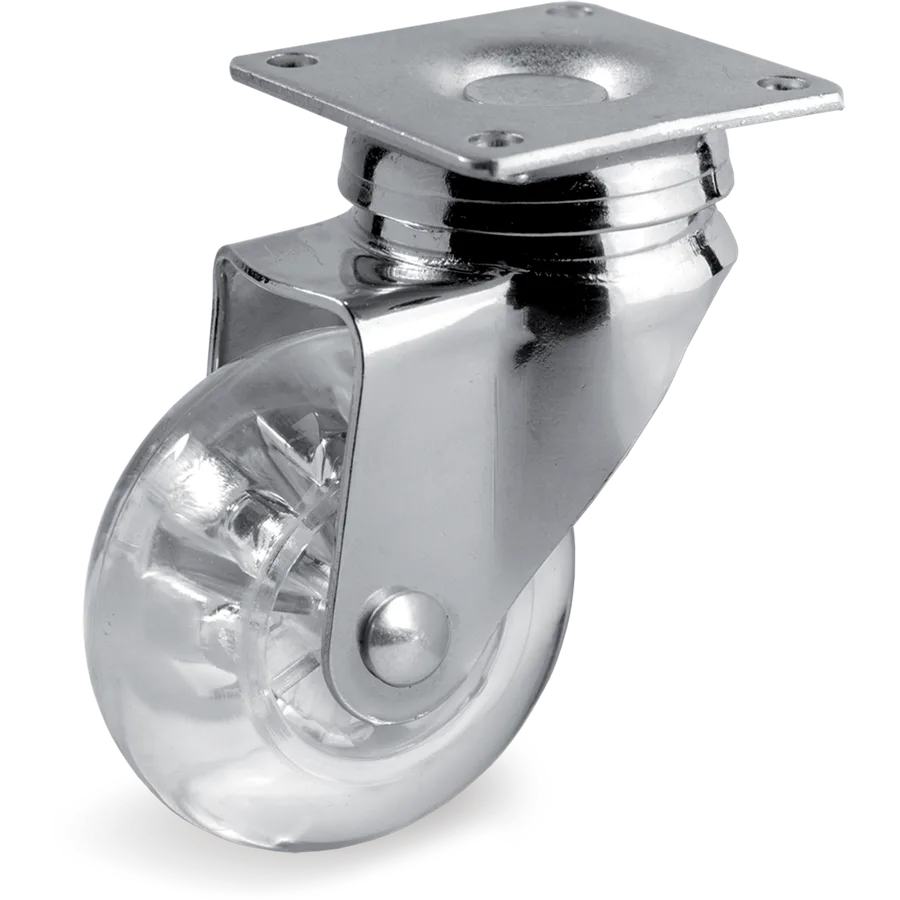

Polyamide 6 swivel castor Ø75×23 mm
Domestic polyurethane castors, methacrylate centre
Tellure description: 39 75X23 CB SRP S3.0
- Diameter (D)
- Ø 75mm
- Width (F)
- 23mm
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 392004
- Series
- Tellure Rôta 39
- Tread
- Polyamide 6
- Diameter (D)
- 75 mm
- Width (F)
- 23 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 103 mm
- Top plate (A × B)
- 60 × 60 mm
- Bolt hole spacing (AA × BB)
- 43 × 43 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Domestic polyurethane castors, methacrylate centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 392002 | Ø50×20 mm | — | C/B | No | 39 50X20 CB SRP S1.0 |
| 392004 | Ø75×23 mm | — | C/B | No | This article |
