323202Series 32Polyamide 6 swivel castor Ø50 mm
Polyamide 6 castors for catering and light equipment
Load: on request
392102Representative image of the familyDrawing dimensions
- DDiameter
- 50 mm
- FWidth
- 20 mm
- HOverall height
- 69 mm
- TNut thread
- M8
- FSBolt length
- 15 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

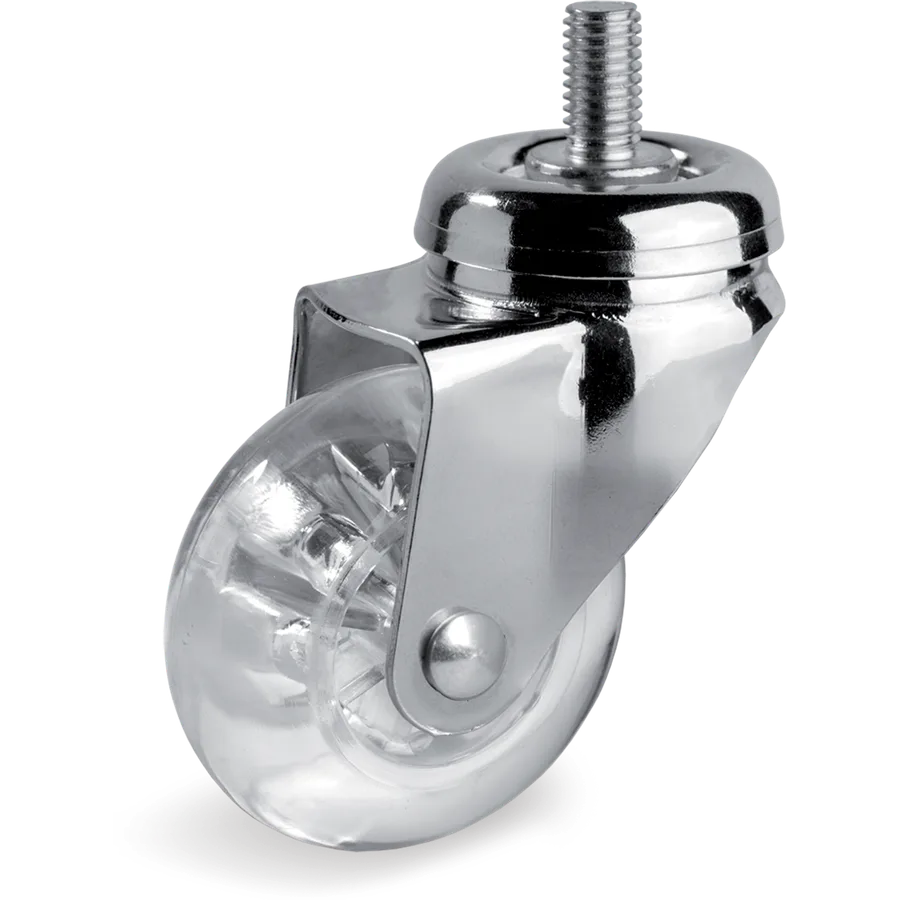

Polyamide 6 swivel castor Ø50×20 mm
Domestic polyurethane castors, methacrylate centre
Tellure description: 39 50X20 CB SRC/FIL M8X15
- Diameter (D)
- Ø 50mm
- Width (F)
- 20mm
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 392102
- Series
- Tellure Rôta 39
- Tread
- Polyamide 6
- Diameter (D)
- 50 mm
- Width (F)
- 20 mm
- Bearing
- Plain bore
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 69 mm
- Fitting
- Stem
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Domestic polyurethane castors, methacrylate centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 392102 | Ø50×20 mm | — | C/B | No | This article |
| 392104 | Ø75×23 mm | — | C/B | No | 39 75X23 CB SRC/FIL M10X25 |
