580108Series 58GH

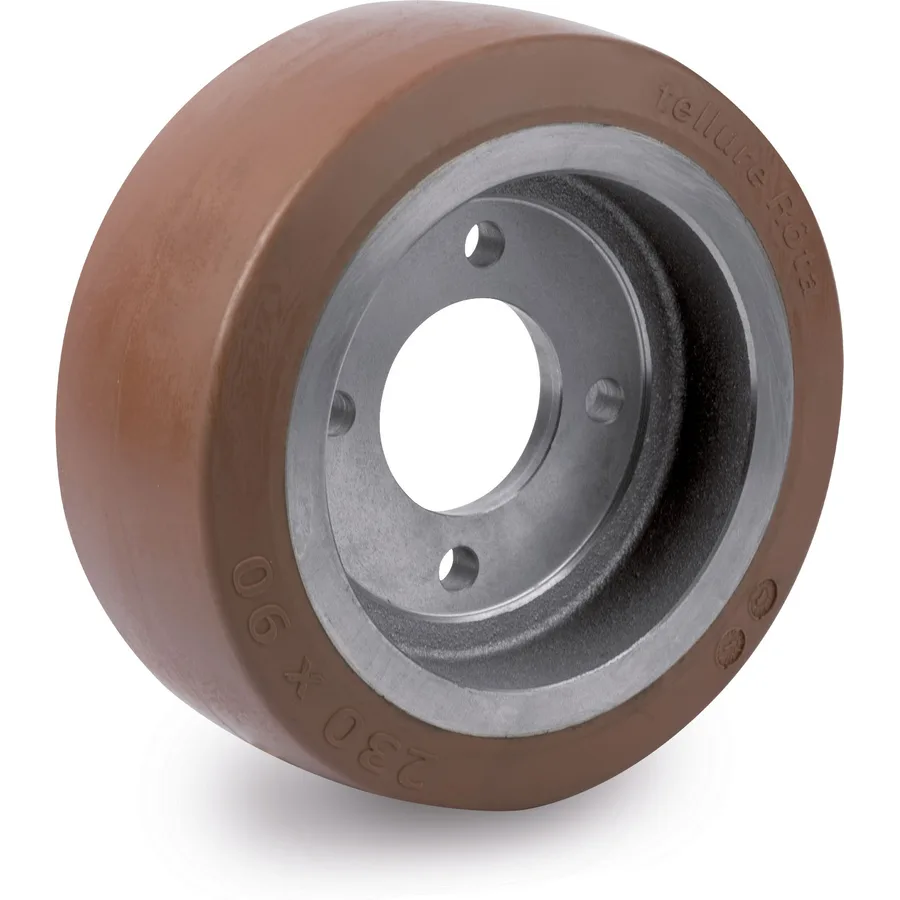

580107Representative image of the familyTR-PowerHigh polyurethane wheel Ø230×90 mm
Rueda motriz en poliuretano TR-PowerHigh, núcleo de hierro fundido
Tellure description: 58GH 230X90 F65H8 4F13 DRIVE
- Diameter (D)
- Ø 230mm
- Width (F)
- 90mm
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 580107
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 230 mm
- Width (F)
- 90 mm
Other sizes in this family
Rueda motriz en poliuretano TR-PowerHigh, núcleo de hierro fundido
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 580105 | Ø230×66.8 mm | 1,200 daN | — | — | 58GH 230X66,8 F45H8 5F13 DRIVE |
| 580101 | Ø230×70 mm | 1,000 daN | — | — | 58GH 230X70 F45H8 5F14+3F M10 DRIVE |
| 580102 | Ø230×70 mm | 1,000 daN | — | — | 58GH 230X70 F45H8 5F13,5 DRIVE |
| 580104 | Ø230×70 mm | 1,000 daN | — | — | 58GH 230X70 F45H8 5F13 DRIVE |
| 580110 | Ø230×75 mm | 1,000 daN | — | — | 58GH 230X75 F45H8 5F13 DRIVE |
| 580103 | Ø230×82 mm | 1,100 daN | — | — | 58GH 230X82 F45H8 5F14+3F M10 DRIVE |
| 580107 | Ø230×90 mm | — | — | — | This article |
| 580106 | Ø250×80 mm | 1,400 daN | — | — | 58GH 250X80 F80H8 5F15 DRIVE |
Similar alternatives
- 580108Series 58GH
620206Series 62GHTR-Roll polyurethane wheel Ø200×50 mm
Ruedas motrices de poliuretano TR-Roll con brida central y 4 taladros pasadores, núcleo de hierro fundido
Load capacity: 800 daN
580206Series 58GHTR-PowerHigh polyurethane wheel Ø200×50 mm
Ruedas motrices de poliuretano TR-PowerHigh con brida central y 4 taladros pasadores, núcleo de hierro fundido
Load capacity: 1,100 daN
064413Series 64TR polyurethane wheel Ø250×80 mm
Rueda motriz en poliuretano TR, núcleo de hierro fundio
Load capacity: 1,400 daN
