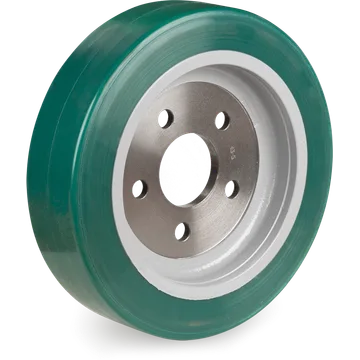

620208Series 62GHTR-Roll polyurethane wheel Ø300×80 mm
TR-Roll polyurethane wheels and drive wheels, cast iron centre
Load capacity: 1,400 daN
580208Representative image of the familyDrawing dimensions
- DDiameter
- 300 mm
- FWidth
- 90 mm
- DDCentre bore diameter
- 67.3 mm
- DHFixing holes
- 5×Ø16.5
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
TR-PowerHigh polyurethane wheel Ø300×90 mm
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Tellure description: 58GH 300X90 F67 5FD16,5 FLANGIA CENTRALE-DRIVE VERN.
- Diameter (D)
- Ø 300mm
- Width (F)
- 90mm
- Load at 4 km/h
- 2,400daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 580208
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 300 mm
- Width (F)
- 90 mm
- Load at 4 km/h
- 2,400 daN
- Load at 6 km/h
- 1,900 daN
- Static load
- 3,400 daN
Other sizes in this family
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 580217 | Ø250×80 mm | 1,900 daN | — | — | 58GH 250X80 F67 5FD16,5 FLANGIA CENTRALE-DRIVE VERN. |
| 580208 | Ø300×90 mm | 2,400 daN | — | — | This article |
