588163Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 38 + 38 mm
- HOverall height
- 170 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

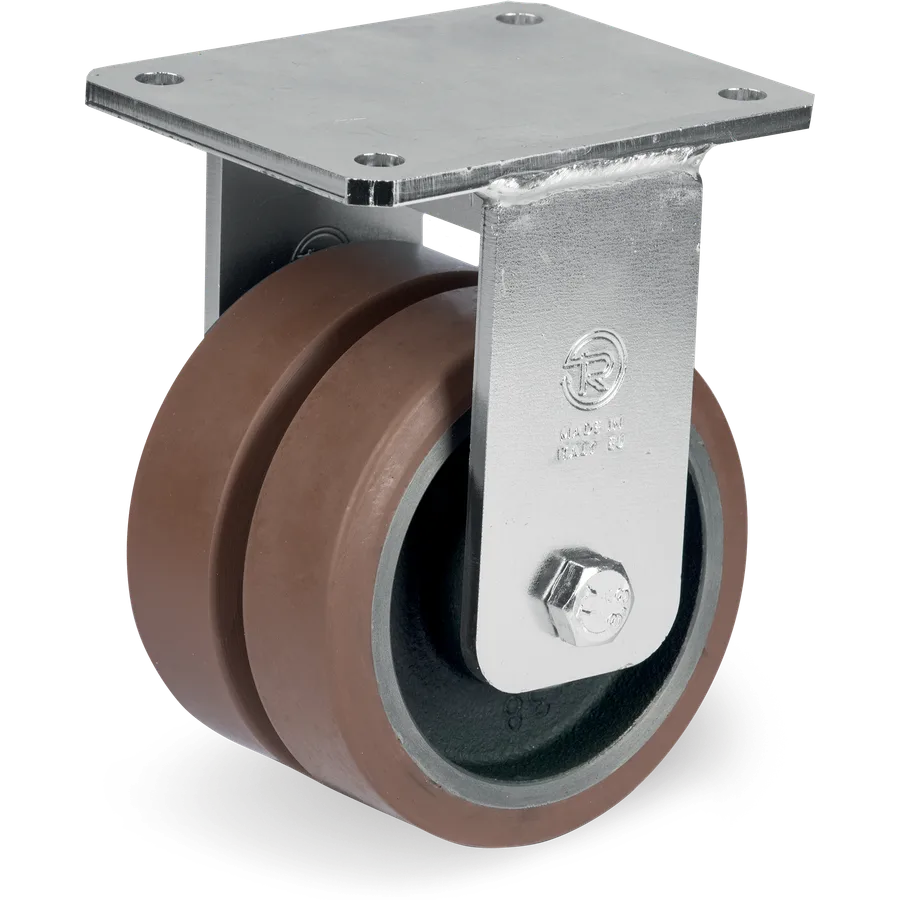

TR-PowerHigh polyurethane fixed castor Ø125 mm
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Tellure description: 58GH 125X38+38 CC SF/EEGMHD R2.1
- Diameter (D)
- Ø 125mm
- Load at 4 km/h
- 1,000daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 588163
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 125 mm
- Load at 4 km/h
- 1,000 daN
- Load at 6 km/h
- 880 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 170 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 588162 | Ø100 mm | 900 daN | C/C 2Z | No | 58GH 100X38+38 CC SF/EEGMHD R2.1 |
| 588163 | Ø125 mm | 1,000 daN | C/C 2Z | No | This article |
