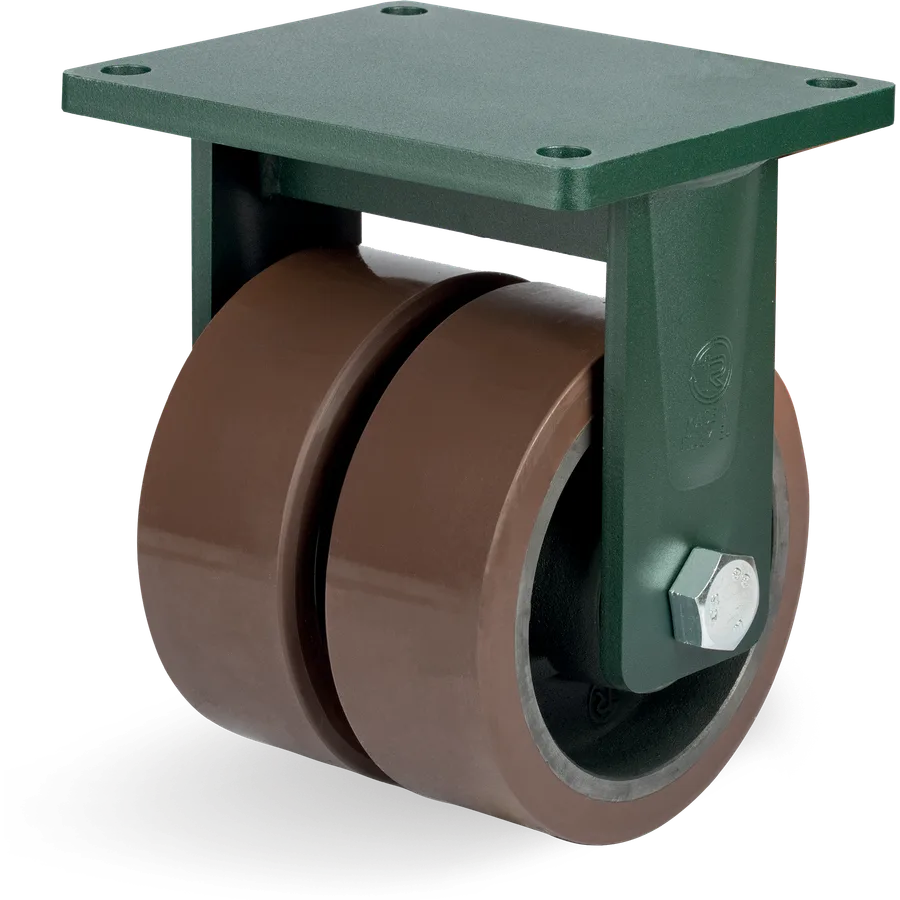

648178Series 64TR polyurethane fixed castor Ø300 mm
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Load capacity: 4,300 daN
588178Representative image of the familyDrawing dimensions
- DDiameter
- 300 mm
- FWidth
- 78 + 78 mm
- HOverall height
- 385 mm
- A×BTop plate (outside)
- 250 × 200 mm
- AA×BBBolt hole spacing
- 210 × 160 mm
- EEBolt hole diameter
- 19 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
TR-PowerHigh polyurethane fixed castor Ø300 mm
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Tellure description: 58GH 300X78+78 CC SF/EEGEHD R5.0
- Diameter (D)
- Ø 300mm
- Load at 4 km/h
- 4,300daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 588178
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 300 mm
- Load at 4 km/h
- 4,300 daN
- Load at 6 km/h
- 3,800 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 385 mm
- Top plate (A × B)
- 250 × 200 mm
- Bolt hole spacing (AA × BB)
- 210 × 160 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- No
Other sizes in this family
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
4 articles
Similar alternatives

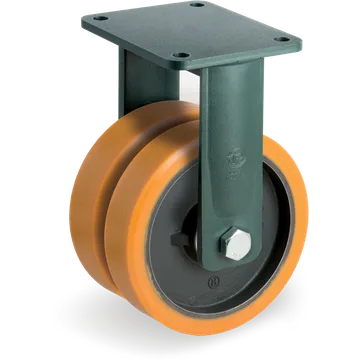

- 648178Series 64
588078Series 58GHTR-PowerHigh polyurethane swivel castor Ø300 mm
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Load capacity: 4,300 daN
648078Series 64TR polyurethane swivel castor Ø300 mm
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Load capacity: 4,300 daN

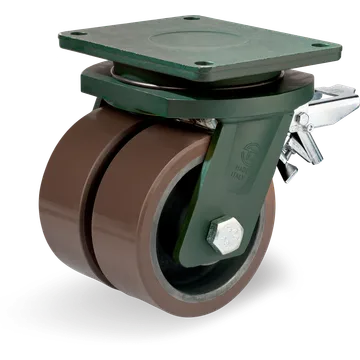

588778Series 58GHTR-PowerHigh polyurethane swivel castor Ø300 mm with brake
