628756Series 62GHTR-Roll polyurethane swivel castor Ø200 mm with brake
TR-Roll polyurethane wheels and drive wheels, cast iron centre
Load capacity: 1,600 daN
588516Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 78 mm
- HOverall height
- 275 mm
- A×BTop plate (outside)
- 175 × 140 mm
- AA×BBBolt hole spacing
- 140 × 105 mm
- EEBolt hole diameter
- 14 mm
- ESwivel offset
- 65 mm
- OBrake swing radius
- 166 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

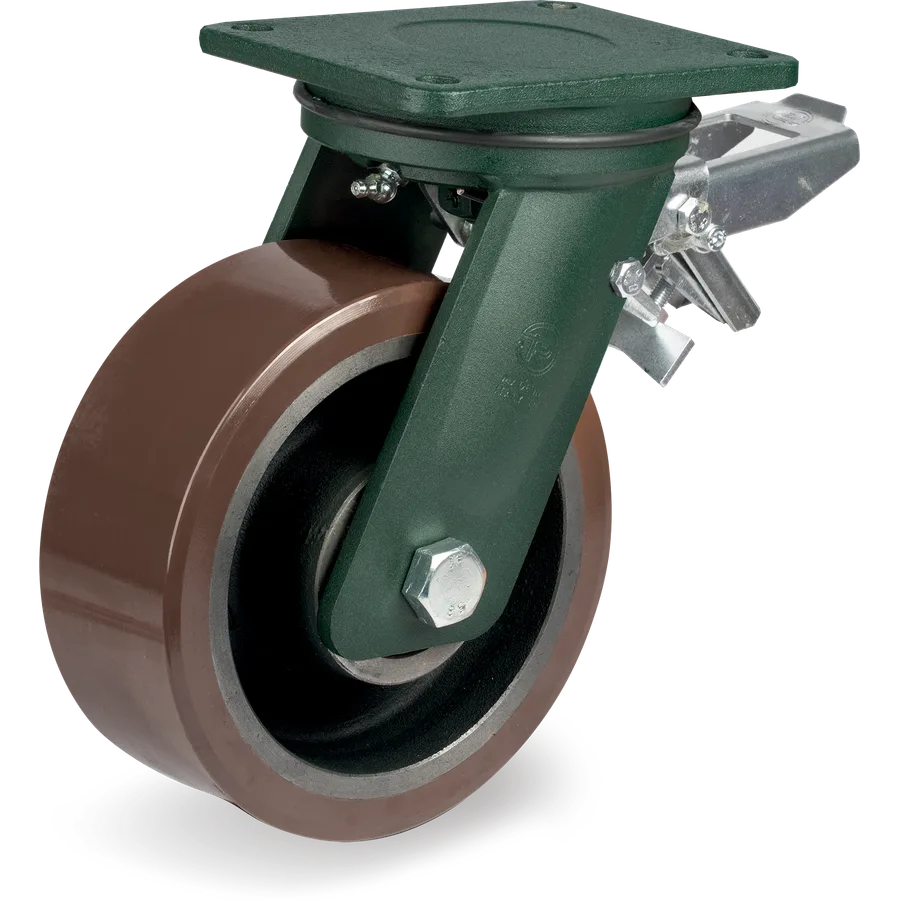

TR-PowerHigh polyurethane swivel castor Ø200×78 mm with brake
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Tellure description: 58GH 200X78 CC SRP/EEHD+FP R3.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 78mm
- Load at 4 km/h
- 1,600daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 588516
- Series
- Tellure Rôta 58GH
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 78 mm
- Load at 4 km/h
- 1,600 daN
- Load at 6 km/h
- 1,360 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 275 mm
- Top plate (A × B)
- 175 × 140 mm
- Bolt hole spacing (AA × BB)
- 140 × 105 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 588515 | Ø150×78 mm | 1,200 daN | C/C 2Z | Yes | 58 150X78 CC SRP/EEHD+FP R3.0 |
| 588516 | Ø200×78 mm | 1,600 daN | C/C 2Z | Yes | This article |
| 588507 | Ø250×60 mm | 1,500 daN | C/C 2Z | Yes | 58GH 250X60 CC SRP/EEHD+FP R3.0 |
| 588527 | Ø250×78 mm | 1,900 daN | C/C 2Z | Yes | 58GH 250X78 CC SRP/EEHD+FP R4.0 |
| 588538 | Ø300×78 mm | 2,400 daN | C/C 2Z | Yes | 58GH 300X78 CC SRP/EEHD+FP R4.0 |
