589506Representative image of the family

Drawing dimensions

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

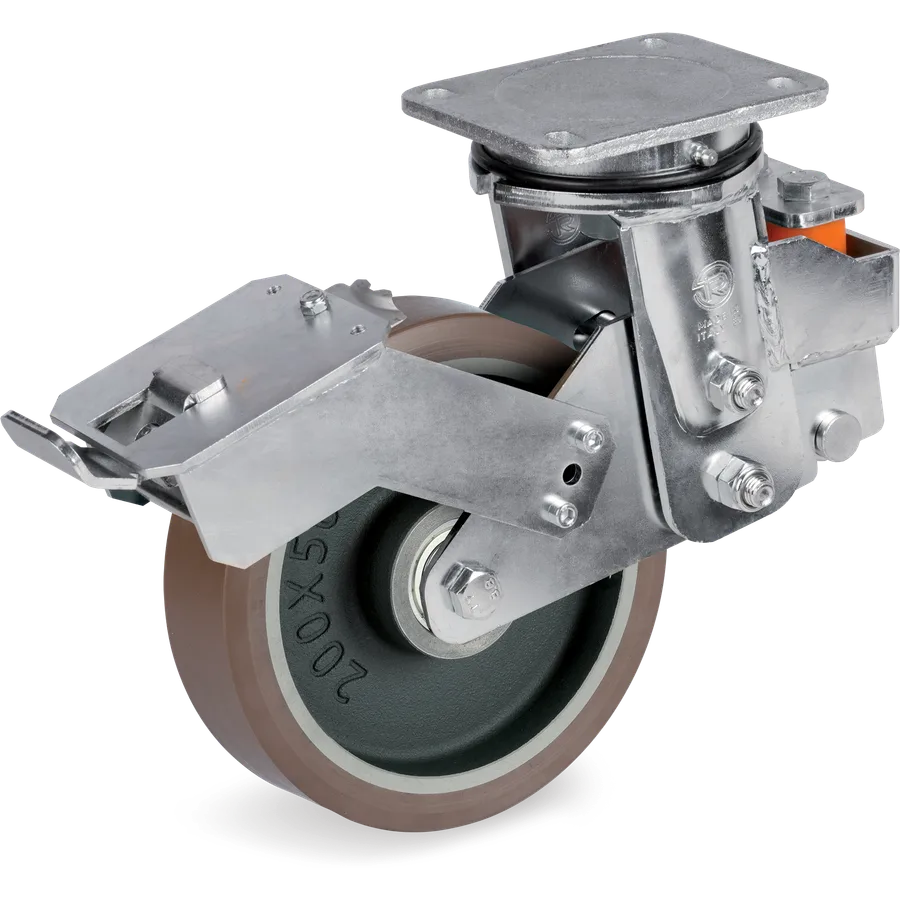

TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake

Name: Tellure Rôta 589506 · TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake
Brand: Tellure Rôta
SKU: 589506

TR-PowerHigh polyurethane wheels, machined cast iron centre

Tellure description: 58 200X50 CC SRP/EESMHD+FA R2.1

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Questions about this article?

Genuine Tellure Rôta product · Made in Italy

TR-PowerHigh polyurethane wheels, machined cast iron centre

3 articles

Code	Ø × F	Load capacity	Bearing	Brake	Tellure description
589504	Ø160×50 mm	950 daN	C/C 2Z	Yes	58 160X50 CC SRP/EESMHD+FA R2.1
589506	Ø200×50 mm	1,000 daN	C/C 2Z	Yes	This article
589508	Ø250×50 mm	1,000 daN	C/C 2Z	Yes	58 250X50 CC SRP/EESMHD+FA R2.1

638906Series 63GH
Vulkollan® swivel castor Ø200×50 mm with brake
Vulkollan® wheels, cast iron centre
Load capacity: 1,000 daN
639506Series 63GH
Vulkollan® swivel castor Ø200×50 mm with brake
Vulkollan® wheels, cast iron centre
Load capacity: 1,000 daN
648506Series 64
TR polyurethane swivel castor Ø200×50 mm with brake
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Load capacity: 1,000 daN
649506Series 64
TR polyurethane swivel castor Ø200×50 mm with brake
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Load capacity: 1,000 daN
