626404Series 62ALTR-Roll polyurethane fixed castor Ø160×50 mm
TR-Roll polyurethane wheels, aluminium centre
Load capacity: 550 daN
626904Representative image of the familyDrawing dimensions
- DDiameter
- 160 mm
- FWidth
- 50 mm
- HOverall height
- 248 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
TR-Roll polyurethane fixed castor Ø160×50 mm
Ergonomic round-profile TR-Roll polyurethane wheels, aluminium centre
Tellure description: 62ER 160X50 CC SF/EESMHD R2.1
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 550daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 626904
- Series
- Tellure Rôta 62ER
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 550 daN
- Load at 6 km/h
- 550 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 248 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ergonomic round-profile TR-Roll polyurethane wheels, aluminium centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 626904 | Ø160×50 mm | 550 daN | C/C 2Z | No | This article |
| 626906 | Ø200×50 mm | 700 daN | C/C 2Z | No | 62ER 200X50 CC SF/EESMHD R2.1 |
Similar alternatives
- 626404Series 62AL
628414Series 62ALTR-Roll polyurethane fixed castor Ø160×50 mm
TR-Roll polyurethane wheels, aluminium centre
Load capacity: 550 daN
629704Series 62ERTR-Roll polyurethane fixed castor Ø160×50 mm
Ergonomic round-profile TR-Roll polyurethane wheels, aluminium centre
Load capacity: 550 daN

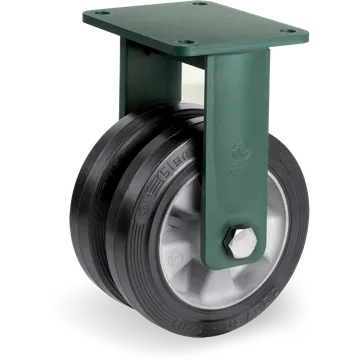

728184Series 72ALElastic rubber fixed castor Ø160 mm
