638062Series 63GH
628062B2Representative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 40 + 40 mm
- HOverall height
- 140 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 55 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

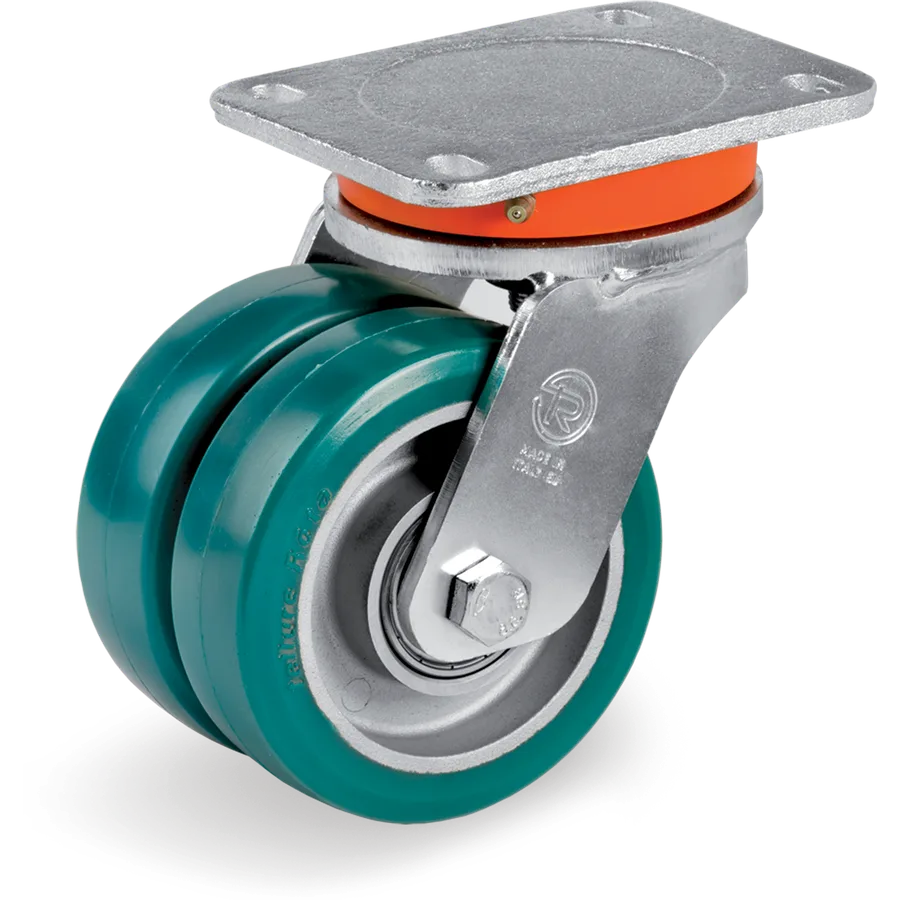

TR-Roll polyurethane swivel castor Ø100 mm
TR-Roll polyurethane wheels, aluminium centre, with EE electro-welded brackets
Tellure description: 62 100X40 SRP/EEGMHD 100 2 INTAGLI
- Diameter (D)
- Ø 100mm
- Load at 4 km/h
- 600daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 628062B2
- Series
- Tellure Rôta 62
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 100 mm
- Load at 4 km/h
- 600 daN
- Load at 6 km/h
- 600 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 140 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
TR-Roll polyurethane wheels, aluminium centre, with EE electro-welded brackets
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 628062 | Ø100 mm | 600 daN | C/C 2Z | No | 62AL 100X40+40 CC SRP/EEGMHD R2.1 |
| 628062B2 | Ø100 mm | 600 daN | C/C 2Z | No | This article |
| 628062B4 | Ø100 mm | 600 daN | C/C 2Z | No | 62 100X40 SRP/EEGMHD 100 4 INTAGLI |
| 628063 | Ø125 mm | 700 daN | C/C 2Z | No | 62AL 125X40+40 CC SRP/EEGMHD R2.1 |
| 628063B2 | Ø125 mm | 700 daN | C/C 2Z | No | 62 125X40 SRP/EEGMHD 125 2 INTAGLI |
| 628063B4 | Ø125 mm | 700 daN | C/C 2Z | No | 62 125X40 SRP/EEGMHD 125 4 INTAGLI |
| 628074 | Ø160 mm | 1,100 daN | C/C 2Z | No | 62AL 160X50+50 CC SRP/EEGMHD R2.1 |
| 628076 | Ø200 mm | 1,400 daN | C/C 2Z | No | 62AL 200X50+50 CC SRP/EEGMHD R2.1 |
Similar alternatives
- 638062Series 63GH

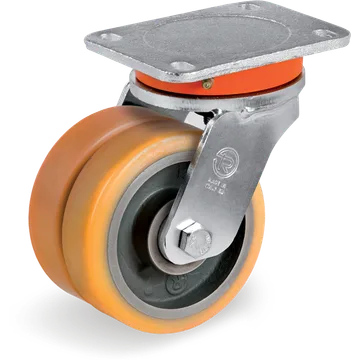

648062Series 64TR polyurethane swivel castor Ø100 mm
