688066Series 68PPolyamide 6 swivel castor Ø200 mm
One-piece polyamide 6 wheels for heavy loads
Load capacity: 1,800 daN
628086Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 78 + 78 mm
- HOverall height
- 280 mm
- A×BTop plate (outside)
- 250 × 200 mm
- AA×BBBolt hole spacing
- 210 × 160 mm
- EEBolt hole diameter
- 19 mm
- ESwivel offset
- 52 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

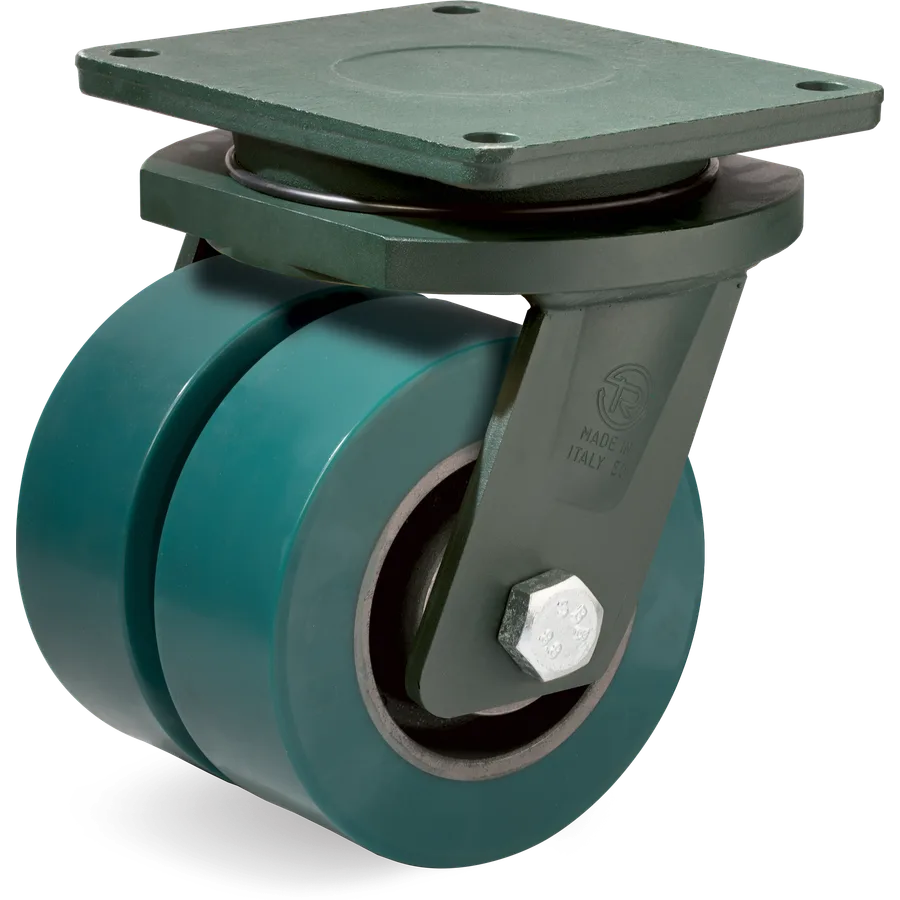

TR-Roll polyurethane swivel castor Ø200 mm
TR-Roll polyurethane wheels and drive wheels, cast iron centre
Tellure description: 62GH 200X78+78 CC SRP/EEGEHD R5.0
- Diameter (D)
- Ø 200mm
- Load at 4 km/h
- 1,800daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 628086
- Series
- Tellure Rôta 62GH
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 200 mm
- Load at 4 km/h
- 1,800 daN
- Load at 6 km/h
- 1,800 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 280 mm
- Top plate (A × B)
- 250 × 200 mm
- Bolt hole spacing (AA × BB)
- 210 × 160 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- No
