628162Representative image of the family

Drawing dimensions

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

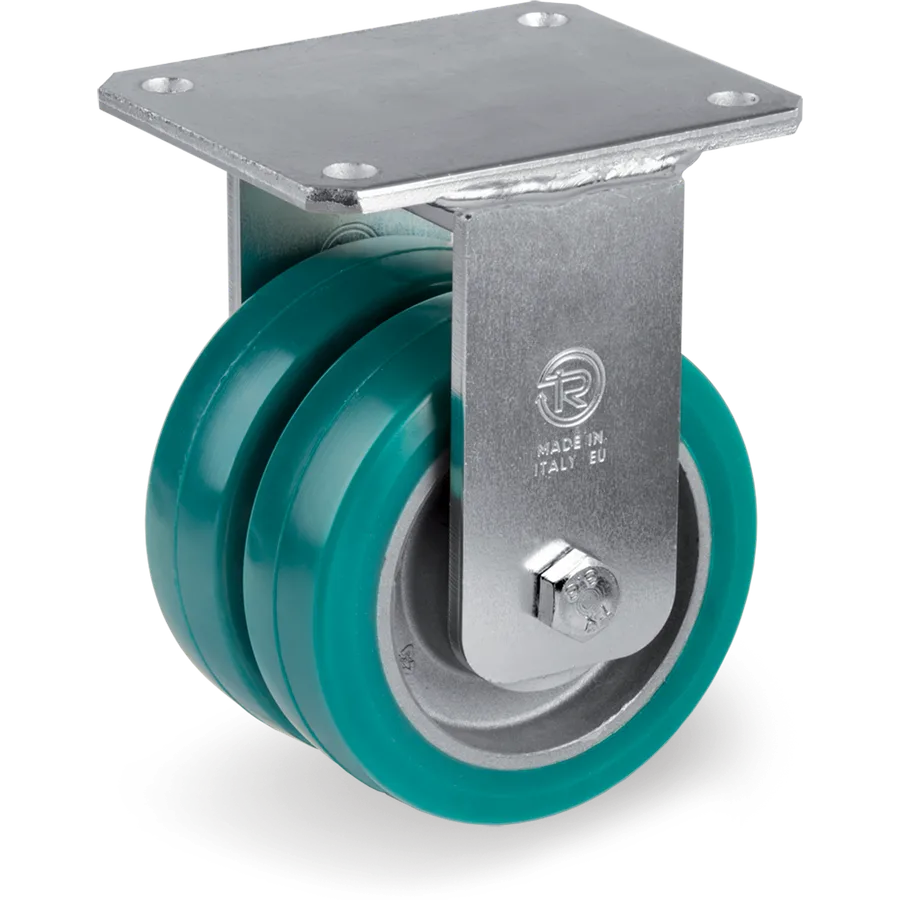

TR-Roll polyurethane fixed castor Ø100 mm

Name: Tellure Rôta 628162 · TR-Roll polyurethane fixed castor Ø100 mm
Brand: Tellure Rôta
SKU: 628162

TR-Roll polyurethane wheels, aluminium centre

Tellure description: 62AL 100X40+40 CC SF/EEGMHD R2.1

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Questions about this article?

Genuine Tellure Rôta product · Made in Italy

TR-Roll polyurethane wheels, aluminium centre

4 articles

Code	Ø × F	Load capacity	Bearing	Brake	Tellure description
628162	Ø100 mm	600 daN	C/C 2Z	No	This article
628163	Ø125 mm	700 daN	C/C 2Z	No	62AL 125X40+40 CC SF/EEGMHD R2.1
628174	Ø160 mm	1,100 daN	C/C 2Z	No	62AL 160X50+50 CC SF/EEGMHD R3.1
628176	Ø200 mm	1,400 daN	C/C 2Z	No	62AL 200X50+50 CC SF/EEGMHD R3.1

638162Series 63GH
Vulkollan® fixed castor Ø100 mm
Vulkollan® wheels, cast iron centre
Load capacity: 700 daN
648162Series 64
TR polyurethane fixed castor Ø100 mm
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Load capacity: 700 daN
638403Series 63GH
Vulkollan® fixed castor Ø125×50 mm
Vulkollan® wheels, cast iron centre
Load capacity: 600 daN
728162Series 72AL

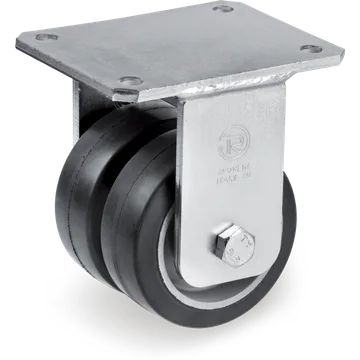

Elastic rubber fixed castor Ø100 mm
