628754Representative image of the familyDrawing dimensions
- DDiameter
- 150 mm
- FWidth
- 50 + 50 mm
- HOverall height
- 223 mm
- A×BTop plate (outside)
- 175 × 140 mm
- AA×BBBolt hole spacing
- 140 × 105 mm
- EEBolt hole diameter
- 14 mm
- ESwivel offset
- 50 mm
- OBrake swing radius
- 164 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

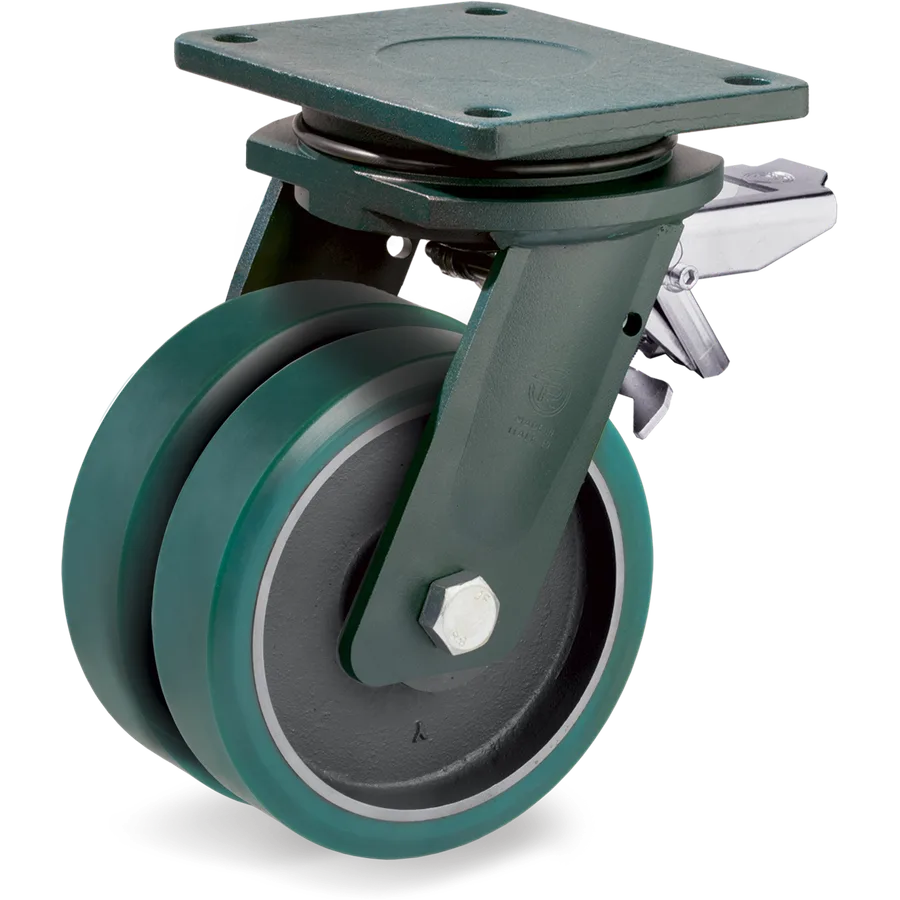

TR-Roll polyurethane swivel castor Ø150 mm with brake
TR-Roll polyurethane wheels and drive wheels, cast iron centre
Tellure description: 62GH 150X50+50 CC SRP/EEGHD+FP R3.0
- Diameter (D)
- Ø 150mm
- Load at 4 km/h
- 1,100daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 628754
- Series
- Tellure Rôta 62GH
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 150 mm
- Load at 4 km/h
- 1,100 daN
- Load at 6 km/h
- 1,100 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 223 mm
- Top plate (A × B)
- 175 × 140 mm
- Bolt hole spacing (AA × BB)
- 140 × 105 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
TR-Roll polyurethane wheels and drive wheels, cast iron centre
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 628754 | Ø150 mm | 1,100 daN | C/C 2Z | Yes | This article |
| 628756 | Ø200 mm | 1,600 daN | C/C 2Z | Yes | 62GH 200X50+50 CC SRP/EEGHD+FP R3.0 |
| 628786 | Ø200 mm | 1,800 daN | C/C 2Z | Yes | 62GH 200X78+78 CC SRP/EEGEHD+FP R5.0 |
| 628777 | Ø250 mm | 2,400 daN | C/C 2Z | Yes | 62GH 250X78+78 CC SRP/EEGEHD+FP R5.0 |
| 628778 | Ø300 mm | 2,800 daN | C/C 2Z | Yes | 62GH 300X78+78 CC SRP/EEGEHD+FP R5.0 |
