628074Series 62ALTR-Roll polyurethane swivel castor Ø160 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio pletina EEG MHD
Load capacity: 1,100 daN

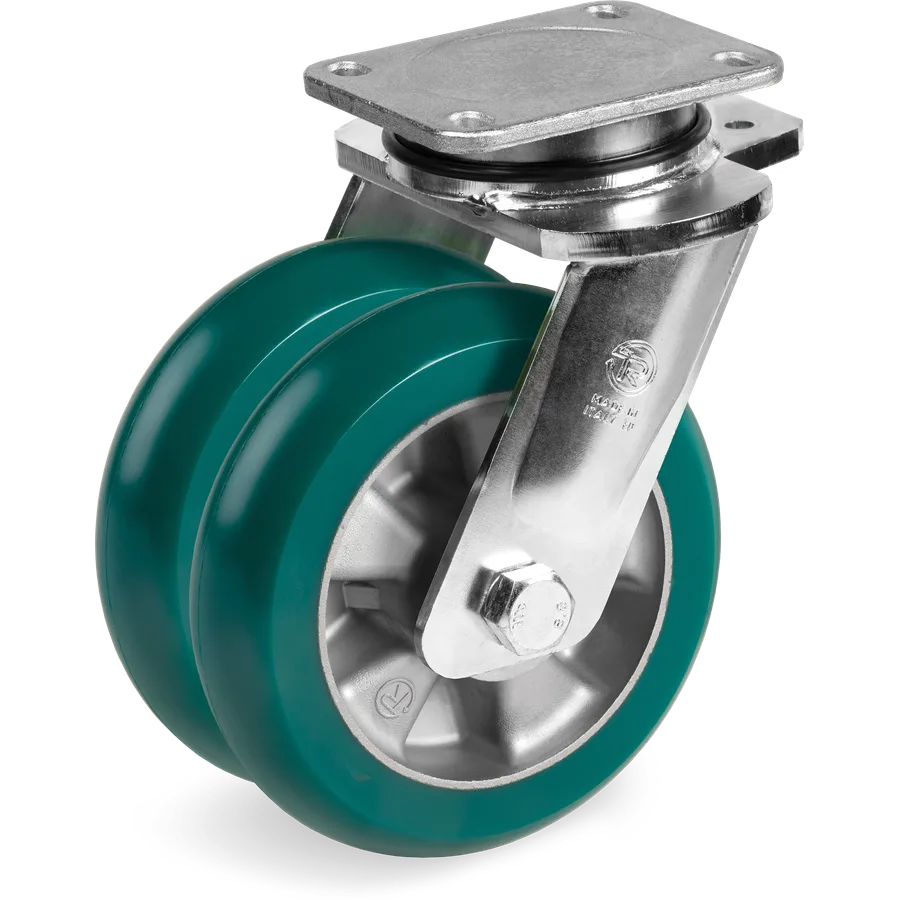

629074Representative image of the familyTR-Roll polyurethane swivel castor Ø160 mm
Ruedas de poliuretano TR-ROLL con perfil redondo, núcleo de aluminio, soporte giratorio pletina EEG MHD
Tellure description: 62ER 160X50+50 CC SRP/EEGMHD R2.1
- Diameter (D)
- Ø 160mm
- Load at 4 km/h
- 1,100daN
- Tread
- TR-Roll polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 629074
- Series
- Tellure Rôta 62ER
- Tread
- TR-Roll polyurethane
- Diameter (D)
- 160 mm
- Load at 4 km/h
- 1,100 daN
- Load at 6 km/h
- 1,100 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de poliuretano TR-ROLL con perfil redondo, núcleo de aluminio, soporte giratorio pletina EEG MHD
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 629074 | Ø160 mm | 1,100 daN | C/C 2Z | No | This article |
| 629076 | Ø200 mm | 1,400 daN | C/C 2Z | No | 62ER 200X50+50 CC SRP/EEGMHD R2.1 |
