638428Representative image of the familyDrawing dimensions
- DDiameter
- 300 mm
- FWidth
- 60 mm
- HOverall height
- 365 mm
- A×BTop plate (outside)
- 200 × 160 mm
- AA×BBBolt hole spacing
- 160 × 120 mm
- EEBolt hole diameter
- 17 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

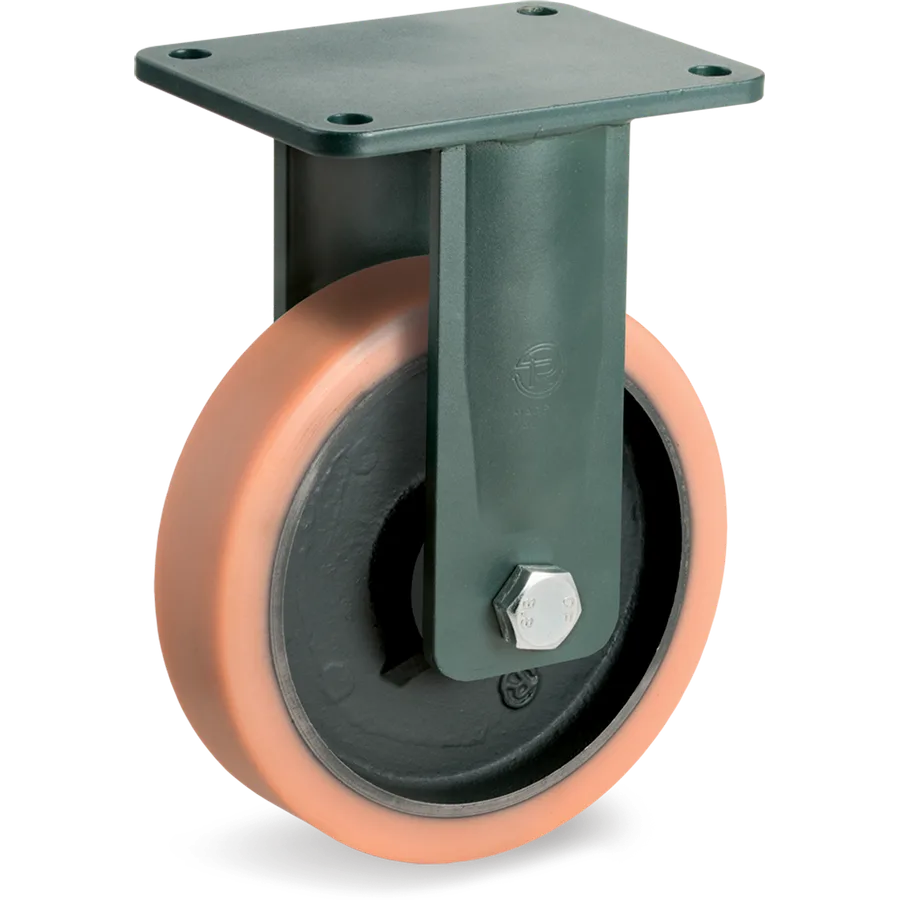

Vulkollan® fixed castor Ø300×60 mm
Vulkollan® wheels, cast iron centre
Tellure description: 63GH 300X60 CC SF/EEHD R4.0
- Diameter (D)
- Ø 300mm
- Width (F)
- 60mm
- Load at 4 km/h
- 1,750daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 638428
- Series
- Tellure Rôta 63GH
- Tread
- Vulkollan®
- Diameter (D)
- 300 mm
- Width (F)
- 60 mm
- Load at 4 km/h
- 1,750 daN
- Load at 6 km/h
- 1,400 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 365 mm
- Top plate (A × B)
- 200 × 160 mm
- Bolt hole spacing (AA × BB)
- 160 × 120 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- No
Other sizes in this family
Vulkollan® wheels, cast iron centre
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 638416 | Ø200×78 mm | 1,600 daN | C/C 2Z | No | 63GH 200X78 CC SF/EEHD R3.0 |
| 638407 | Ø250×60 mm | 1,500 daN | C/C 2Z | No | 63GH 250X60 CC SF/EEHD R3.0 |
| 638417 | Ø250×78 mm | 1,600 daN | C/C 2Z | No | 63GH 250X78 CC SF/EEHD R3.0 |
| 638427 | Ø250×78 mm | 1,900 daN | C/C 2Z | No | 63GH 250X78 CC SF/EEHD R4.0 |
| 638408 | Ø300×60 mm | 1,600 daN | C/C 2Z | No | 63GH 300X60 CC SF/EEHD R3.0 |
| 638428 | Ø300×60 mm | 1,750 daN | C/C 2Z | No | This article |
| 638418 | Ø300×78 mm | 1,600 daN | C/C 2Z | No | 63GH 300X78 CC SF/EEHD R3.0 |
| 638438 | Ø300×78 mm | 2,300 daN | C/C 2Z | No | 63GH 300X78 CC SF/EEHD R4.0 |
