638314Series 63GHVulkollan® swivel castor Ø160×50 mm
Ruedas de Vulkollan®, núcleo de hierro fundido mecánico, soporte giratorio pletina EE MHD
Load capacity: 750 daN

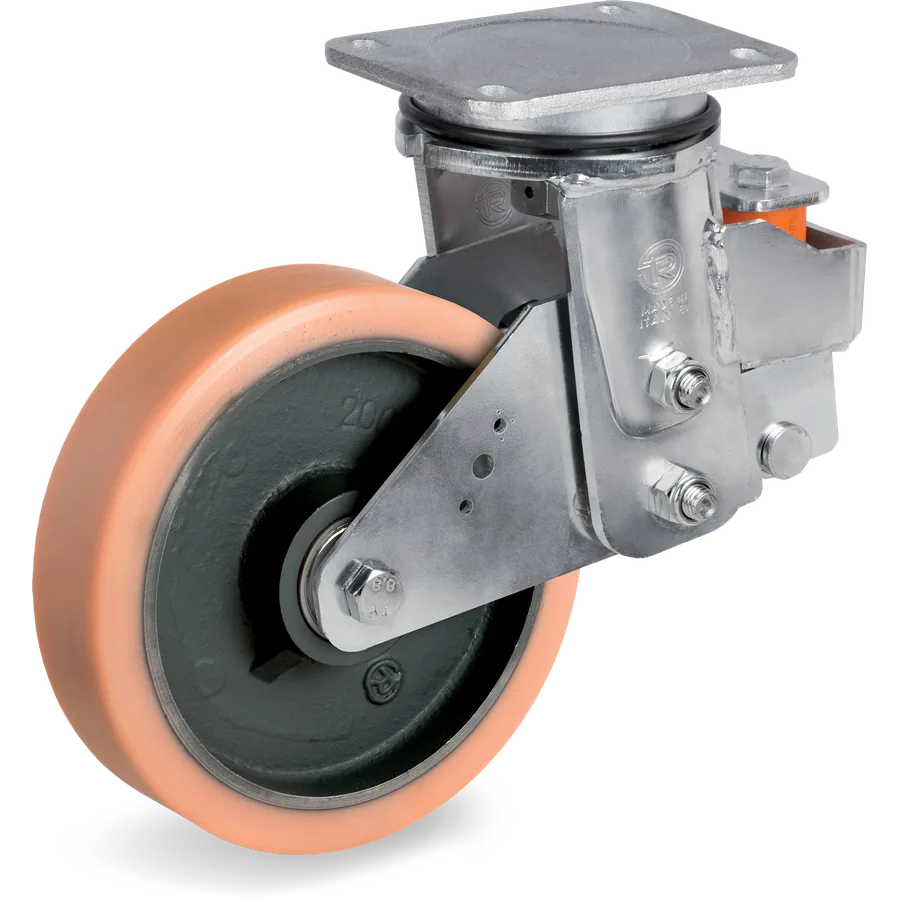

639304Representative image of the familyVulkollan® swivel castor Ø160×50 mm
Ruedas de Vulkollan®, núcleo de hierro fundido, soporte giratorio con amortiguación a pletina EES MHD
Tellure description: 63GH 160X50 CC SRP/EESMHD R2.1
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 750daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 639304
- Series
- Tellure Rôta 63GH
- Tread
- Vulkollan®
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 750 daN
- Load at 6 km/h
- 600 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de Vulkollan®, núcleo de hierro fundido, soporte giratorio con amortiguación a pletina EES MHD
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 639304 | Ø160×50 mm | 750 daN | C/C 2Z | No | This article |
| 639306 | Ø200×50 mm | 1,000 daN | C/C 2Z | No | 63GH 200X50 CC SRP/EESMHD R2.1 |
