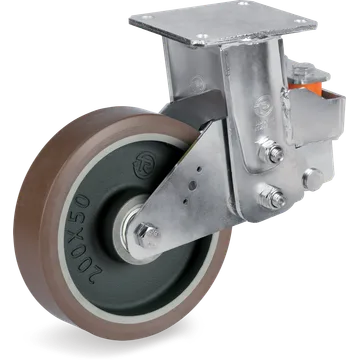

589406Series 58TR-PowerHigh polyurethane fixed castor Ø200×50 mm
TR-PowerHigh polyurethane wheels, machined cast iron centre
Load capacity: 1,000 daN
639406Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 268 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

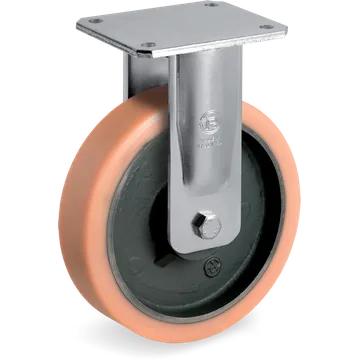

Vulkollan® fixed castor Ø200×50 mm
Vulkollan® wheels, cast iron centre
Tellure description: 63GH 200X50 CC SF/EESMHD R2.1
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 1,000daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 639406
- Series
- Tellure Rôta 63GH
- Tread
- Vulkollan®
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 1,000 daN
- Load at 6 km/h
- 800 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 268 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Vulkollan® wheels, cast iron centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 639404 | Ø160×50 mm | 750 daN | C/C 2Z | No | 63GH 160X50 CC SF/EESMHD R2.1 |
| 639406 | Ø200×50 mm | 1,000 daN | C/C 2Z | No | This article |
Similar alternatives
- 589406Series 58
638406Series 63GH

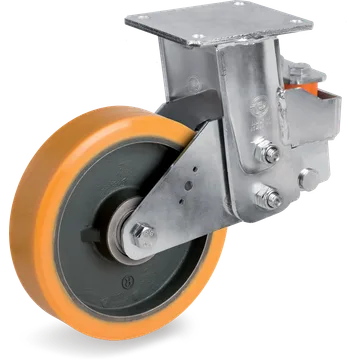

648406Series 64TR polyurethane fixed castor Ø200×50 mm
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Load capacity: 1,000 daN

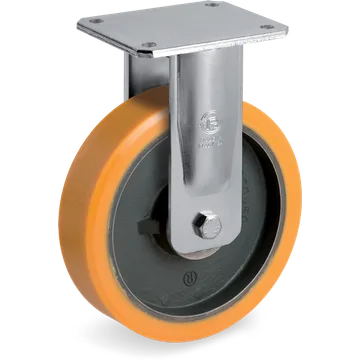

649406Series 64TR polyurethane fixed castor Ø200×50 mm
