588767Series 58GHTR-PowerHigh polyurethane swivel castor Ø250 mm with brake
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Load capacity: 3,000 daN
648767Representative image of the familyDrawing dimensions
- DDiameter
- 250 mm
- FWidth
- 60 + 60 mm
- HOverall height
- 330 mm
- A×BTop plate (outside)
- 250 × 200 mm
- AA×BBBolt hole spacing
- 210 × 160 mm
- EEBolt hole diameter
- 19 mm
- ESwivel offset
- 62 mm
- OBrake swing radius
- 190 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

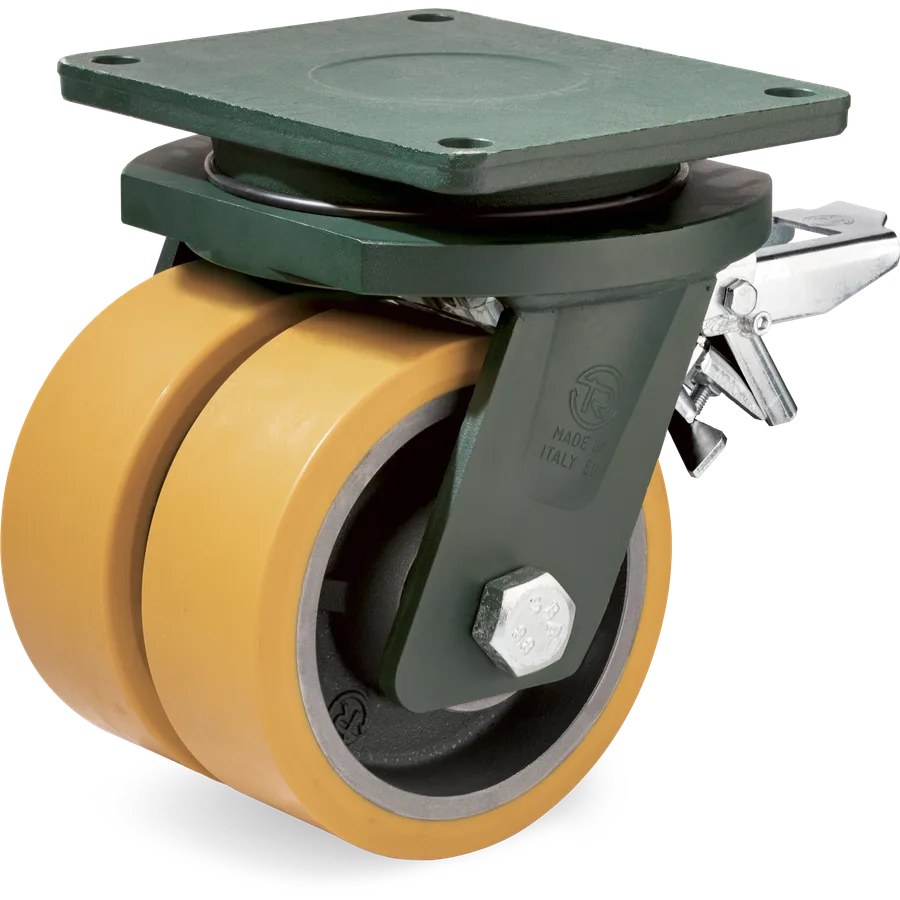

TR polyurethane swivel castor Ø250 mm with brake
TR polyurethane wheels, cast iron centre, loose and with every type of bracket
Tellure description: 64 250X60+60 CC SRP/EEGEHD+FP R5.0
- Diameter (D)
- Ø 250mm
- Load at 4 km/h
- 3,000daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 648767
- Series
- Tellure Rôta 64
- Tread
- TR polyurethane
- Diameter (D)
- 250 mm
- Load at 4 km/h
- 3,000 daN
- Load at 6 km/h
- 2,400 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 330 mm
- Top plate (A × B)
- 250 × 200 mm
- Bolt hole spacing (AA × BB)
- 210 × 160 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- Yes
- Brake type
- Rear brake
