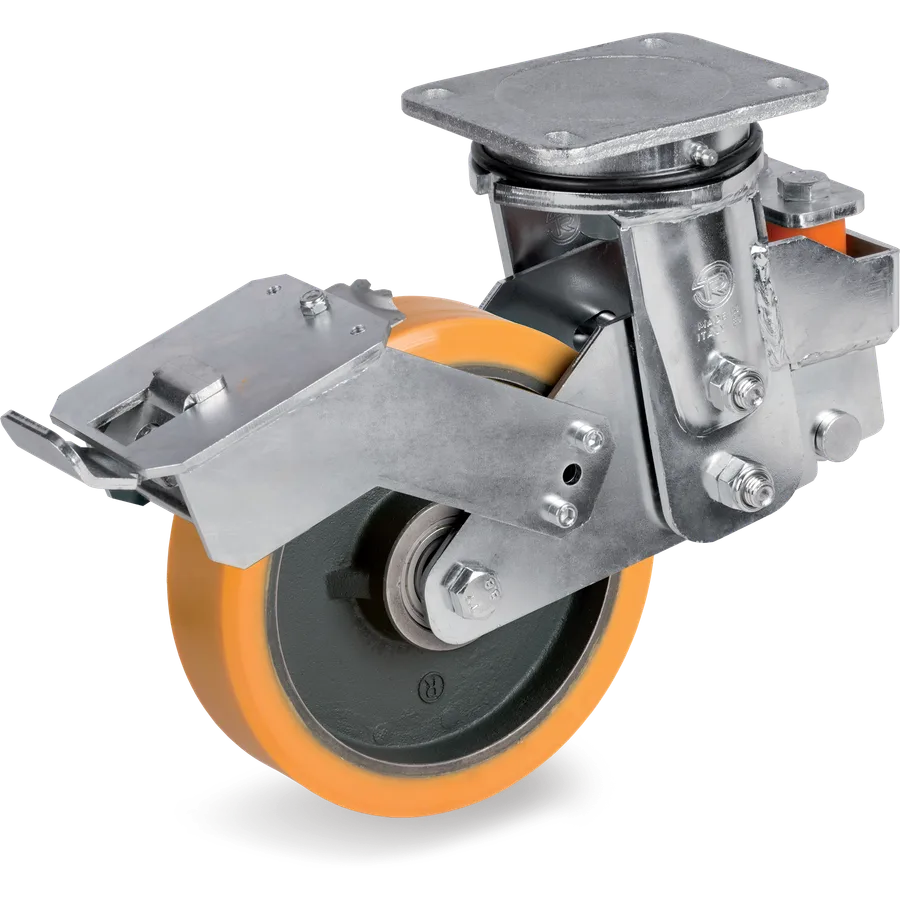

649504Representative image of the family

Drawing dimensions

Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

TR polyurethane swivel castor Ø160×50 mm with brake

Name: Tellure Rôta 649504 · TR polyurethane swivel castor Ø160×50 mm with brake
Brand: Tellure Rôta
SKU: 649504

TR polyurethane wheels, cast iron centre, loose and with every type of bracket

Tellure description: 64 160X50 CC SRP/EESMHD+FA R2.1

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Questions about this article?

Genuine Tellure Rôta product · Made in Italy

TR polyurethane wheels, cast iron centre, loose and with every type of bracket

3 articles

Code	Ø × F	Load capacity	Bearing	Brake	Tellure description
649504	Ø160×50 mm	750 daN	C/C 2Z	Yes	This article
649506	Ø200×50 mm	1,000 daN	C/C 2Z	Yes	64 200X50 CC SRP/EESMHD+FA R2.1
649508	Ø250×50 mm	1,000 daN	C/C 2Z	Yes	64 250X50 CC SRP/EESMHD+FA R2.1
