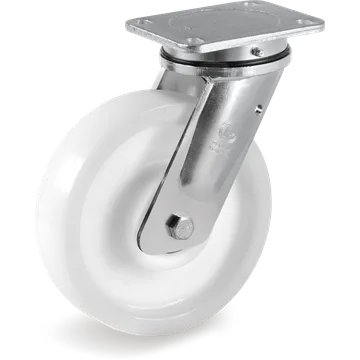

682956Series 68EPPolyamide 6 swivel castor Ø200×50 mm
One-piece polyamide 6 wheels for heavy loads, EP brackets
Load capacity: 1,500 daN
659076Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 + 50 mm
- HOverall height
- 258 mm
- A×BTop plate (outside)
- 135 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 65 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
TR polyurethane swivel castor Ø200 mm
Round-profile TR polyurethane wheels, aluminium centre
Tellure description: 65ER 200X50+50 CC SRP/EEGMHD R2.1
- Diameter (D)
- Ø 200mm
- Load at 4 km/h
- 1,500daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 659076
- Series
- Tellure Rôta 65ER
- Tread
- TR polyurethane
- Diameter (D)
- 200 mm
- Load at 4 km/h
- 1,500 daN
- Load at 6 km/h
- 1,280 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 258 mm
- Top plate (A × B)
- 135 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Round-profile TR polyurethane wheels, aluminium centre
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 659074 | Ø160 mm | 1,400 daN | C/C 2Z | No | 65ER 160X50+50 CC SRP/EEGMHD R2.1 |
| 659076 | Ø200 mm | 1,500 daN | C/C 2Z | No | This article |
