588076Series 58GHTR-PowerHigh polyurethane swivel castor Ø200 mm
TR-PowerHigh polyurethane wheels and drive wheels, cast iron centre
Load capacity: 2,000 daN
682996Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 + 50 mm
- HOverall height
- 285 mm
- A×BTop plate (outside)
- 200 × 160 mm
- AA×BBBolt hole spacing
- 160 × 120 mm
- EEBolt hole diameter
- 17 mm
- ESwivel offset
- 65 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

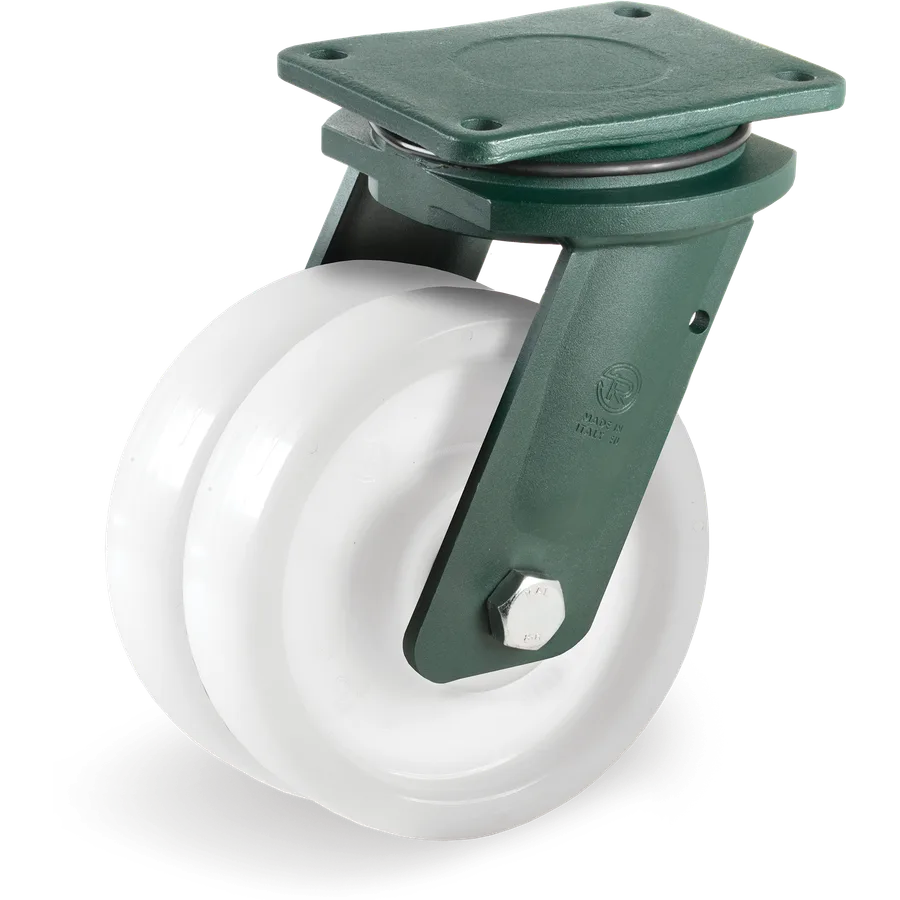

Polyamide 6 swivel castor Ø200 mm
One-piece polyamide 6 wheels for heavy loads, EP brackets
Tellure description: 68EP 200X50+50 CC SRP/EEGHD R4.0
- Diameter (D)
- Ø 200mm
- Load at 4 km/h
- 2,000daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 682996
- Series
- Tellure Rôta 68EP
- Tread
- Polyamide 6
- Diameter (D)
- 200 mm
- Load at 4 km/h
- 2,000 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 285 mm
- Top plate (A × B)
- 200 × 160 mm
- Bolt hole spacing (AA × BB)
- 160 × 120 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- No
