628808Series 62GHTR-Roll polyurethane fixed castor Ø250×78 mm
TR-Roll polyurethane wheels and drive wheels, cast iron centre
Load capacity: 1,200 daN
688407Representative image of the familyDrawing dimensions
- DDiameter
- 250 mm
- FWidth
- 60 mm
- HOverall height
- 320 mm
- A×BTop plate (outside)
- 175 × 140 mm
- AA×BBBolt hole spacing
- 140 × 105 mm
- EEBolt hole diameter
- 14 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

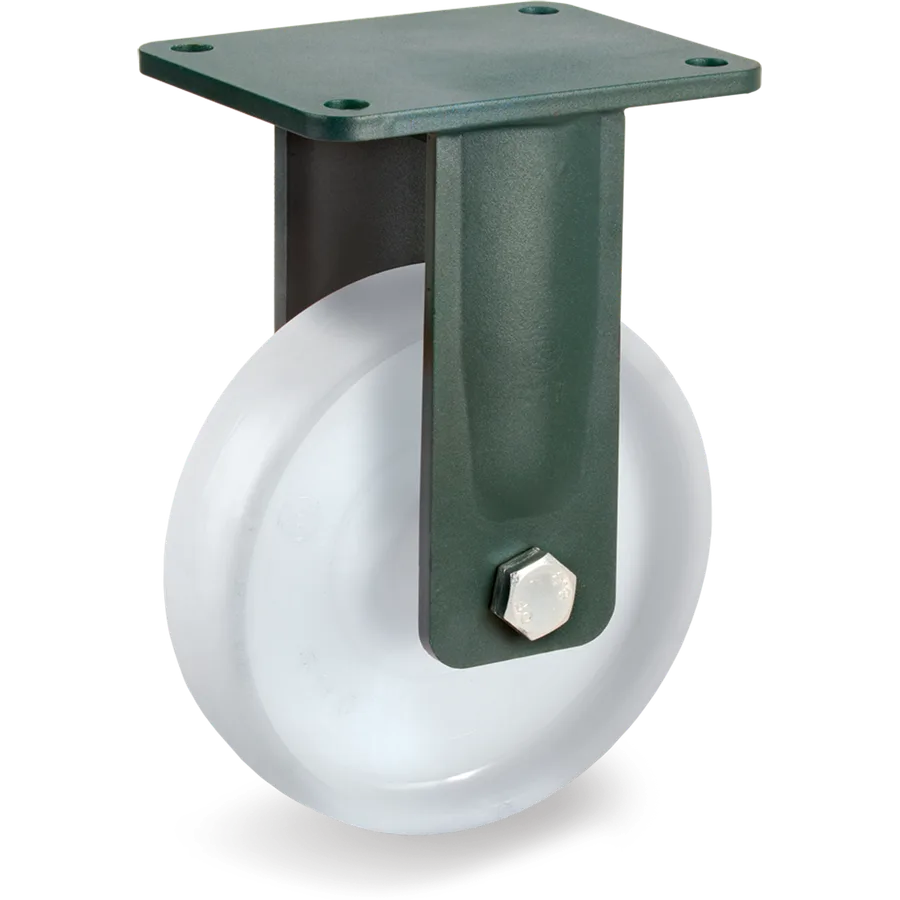

Polyamide 6 fixed castor Ø250×60 mm
One-piece polyamide 6 wheels
Tellure description: 68 250X60 CB SF/EEHD R3.0
- Diameter (D)
- Ø 250mm
- Width (F)
- 60mm
- Load at 4 km/h
- 1,200daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 688407
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 250 mm
- Width (F)
- 60 mm
- Load at 4 km/h
- 1,200 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Fixed
- Overall height (H)
- 320 mm
- Top plate (A × B)
- 175 × 140 mm
- Bolt hole spacing (AA × BB)
- 140 × 105 mm
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- No
