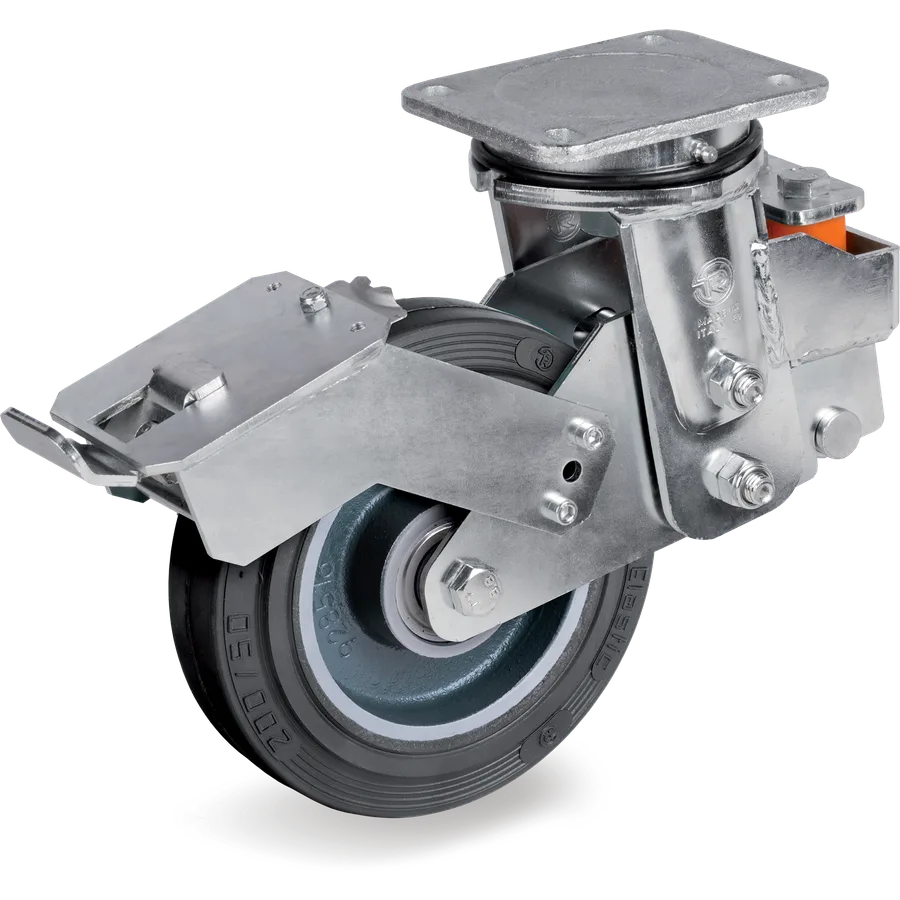

726006Representative image of the familyElastic rubber swivel castor Ø200×50 mm with brake
Ruedas en goma "Sigma Elastic", núcleo en hierro fundido mecánico, soporte giratorio con amortiguación a pletina EES MHD con freio
Tellure description: 72GH 200X50 CC SRP/EESMHD+FA R2.1
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 500daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 726006
- Series
- Tellure Rôta 72GH
- Tread
- Elastic rubber
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 500 daN
- Load at 6 km/h
- 400 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Other sizes in this family
Ruedas en goma "Sigma Elastic", núcleo en hierro fundido mecánico, soporte giratorio con amortiguación a pletina EES MHD con freio
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 726004 | Ø150×50 mm | 400 daN | C/C 2Z | Yes | 72GH 150X50 CC SRP/EESMHD+FA R2.1 |
| 726006 | Ø200×50 mm | 500 daN | C/C 2Z | Yes | This article |
