626304Series 62ALTR-Roll polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio, soporte giratorio con amortiguación a pletina EES MHD
Load capacity: 550 daN

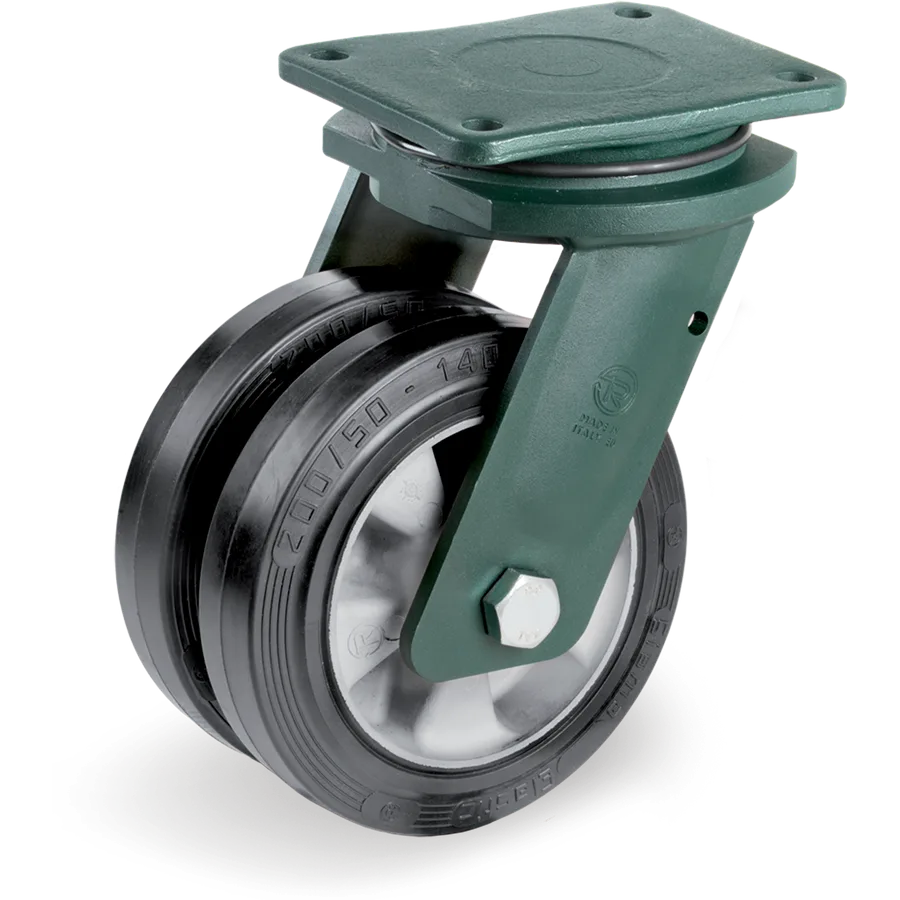

728084Representative image of the familyElastic rubber swivel castor Ø160 mm
Ruedas en goma "Sigma Elastic", núcleo en aluminio, soporte giratorio pletina EEG HD
Tellure description: 72AL 160X50+50 CC SRP/EEGHD R3.0
- Diameter (D)
- Ø 160mm
- Load at 4 km/h
- 600daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 728084
- Series
- Tellure Rôta 72AL
- Tread
- Elastic rubber
- Diameter (D)
- 160 mm
- Load at 4 km/h
- 600 daN
- Load at 6 km/h
- 480 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Forged steel
- Brake
- No
Other sizes in this family
Ruedas en goma "Sigma Elastic", núcleo en aluminio, soporte giratorio pletina EEG HD
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 728084 | Ø160 mm | 600 daN | C/C 2Z | No | This article |
| 728086 | Ø200 mm | 1,000 daN | C/C 2Z | No | 72AL 200X50+50 CC SRP/EEGHD R3.0 |
