729403Series 72GHElastic rubber fixed castor Ø125×50 mm
Ruedas de goma Sigma Elastic, núcleo de hierro fundido mecánico, soporte fijo EE MHD
Load capacity: 300 daN

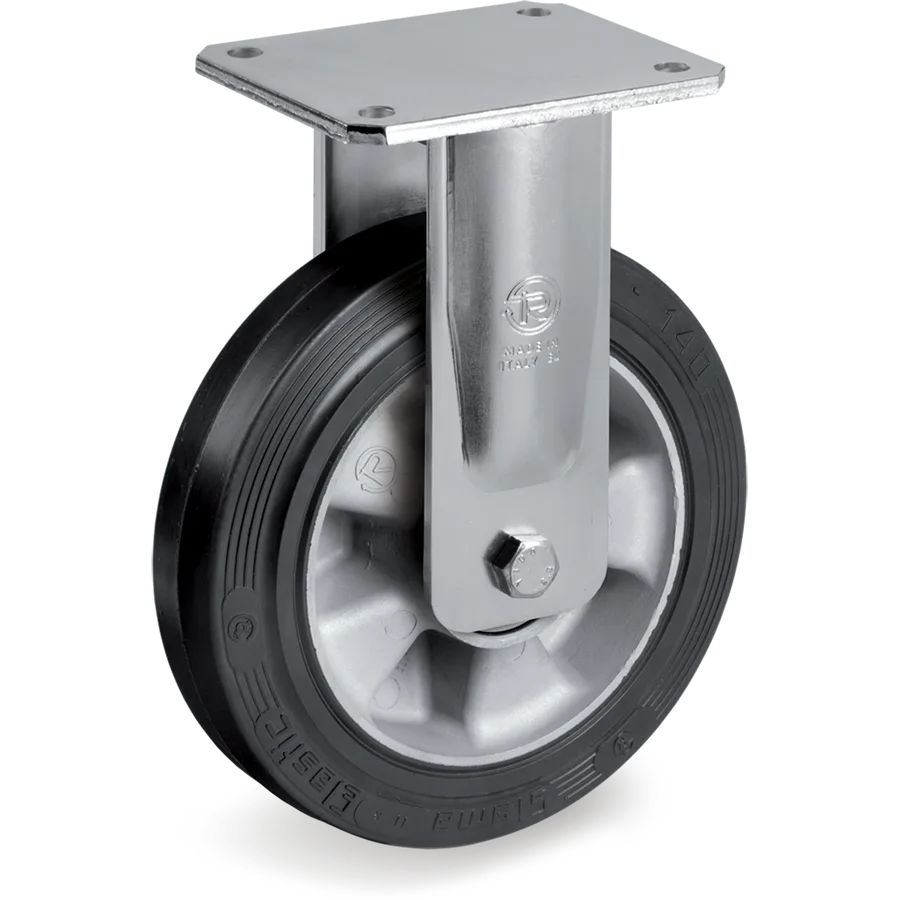

728403Representative image of the familyElastic rubber fixed castor Ø125×50 mm
Ruedas de goma Sigma Elastic, núcleo de aluminio, soporte fijo EE MHD
Tellure description: 72AL 125X50 CC SF/EEMHD R2.1
- Diameter (D)
- Ø 125mm
- Width (F)
- 50mm
- Load at 4 km/h
- 230daN
- Tread
- Elastic rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 728403
- Series
- Tellure Rôta 72AL
- Tread
- Elastic rubber
- Diameter (D)
- 125 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 230 daN
- Load at 6 km/h
- 180 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas de goma Sigma Elastic, núcleo de aluminio, soporte fijo EE MHD
5 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 728403 | Ø125×50 mm | 230 daN | C/C 2Z | No | This article |
| 728414 | Ø160×50 mm | 300 daN | C/C 2Z | No | 72AL 160X50 CC SF/EEMHD R2.1 |
| 728405 | Ø180×50 mm | 350 daN | C/C 2Z | No | 72AL 180X50 CC SF/EEMHD R2.1 |
| 728406 | Ø200×50 mm | 500 daN | C/C 2Z | No | 72AL 200X50 CC SF/EEMHD R2.1 |
| 728407 | Ø250×50 mm | 500 daN | C/C 2Z | No | 72AL 250X50 CC SF/EEMHD R2.1 |
