652304Series 65HTTR polyurethane wheel Ø160×50 mm
Ruedas de poliuretano "TR" alto espesor, núcleo de aluminio,
Load capacity: 700 daN
582304Representative image of the familyTR-PowerHigh polyurethane wheel Ø160×50 mm
Ruedas de poliuretano TR-PowerHigh alto espesor, núcleo de aluminio,
Tellure description: 58HT 160X50 CC F20 LM58
- Diameter (D)
- Ø 160mm
- Width (F)
- 50mm
- Load at 4 km/h
- 700daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 582304
- Series
- Tellure Rôta 58HT
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 160 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 700 daN
- Load at 6 km/h
- 560 daN
- Static load
- 900 daN
- Bearing
- Ball bearings 2Z
- Bore diameter (DD)
- 20 mm
- Hub length (L)
- 58 mm
- Seat diameter (LL)
- 47 mm
- Bearing seat depth (M)
- 14 mm
Other sizes in this family
Ruedas de poliuretano TR-PowerHigh alto espesor, núcleo de aluminio,
8 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 582302 | Ø100×40 mm | 350 daN | C/C 2Z | — | 58HT 100X40 CC F15 LM40 |
| 584302 | Ø100×40 mm | 350 daN | S/C | — | 58HT 100X40 SC 32X9 LM40 |
| 582303 | Ø125×40 mm | 450 daN | C/C 2Z | — | 58HT 125X40 CC F20 LM50 |
| 584303 | Ø125×40 mm | 450 daN | S/C | — | 58HT 125X40 SC 47X14 LM50 |
| 582304 | Ø160×50 mm | 700 daN | C/C 2Z | — | This article |
| 584304 | Ø160×50 mm | 700 daN | S/C | — | 58HT 160X50 SC 47X14 LM58 |
| 582306 | Ø200×50 mm | 800 daN | C/C 2Z | — | 58HT 200X50 CC F20 LM60 |
| 584306 | Ø200×50 mm | 800 daN | S/C | — | 58HT 200X50 SC 47X14 LM60 |
Similar alternatives
- 652304Series 65HT
585344Series 58HTTR-PowerHigh polyurethane swivel castor Ø160×50 mm
Ruedas de poliuretano TR-PowerHigh alto espesor, soporte giratorio pletina PT
Load capacity: 700 daN
585414Series 58HTTR-PowerHigh polyurethane fixed castor Ø160×50 mm
Ruedas de poliuretano TR-PowerHigh, núcleo en aluminio, soporte fijo P
Load capacity: 700 daN

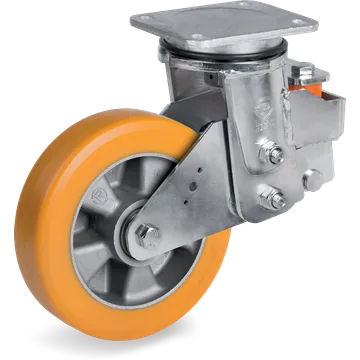

655004Series 65HTTR polyurethane swivel castor Ø160×50 mm
