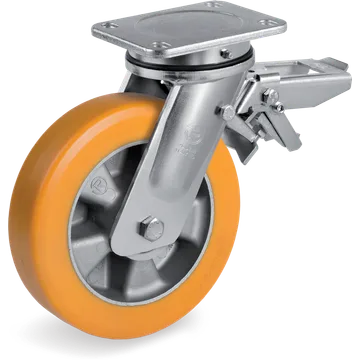

654906Series 65HTTR polyurethane swivel castor Ø200×50 mm with brake
Thick-tread TR polyurethane wheels, aluminium centre
Load capacity: 800 daN
585536Representative image of the familyDrawing dimensions
- DDiameter
- 200 mm
- FWidth
- 50 mm
- HOverall height
- 250 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 70 mm
- OBrake swing radius
- 126 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

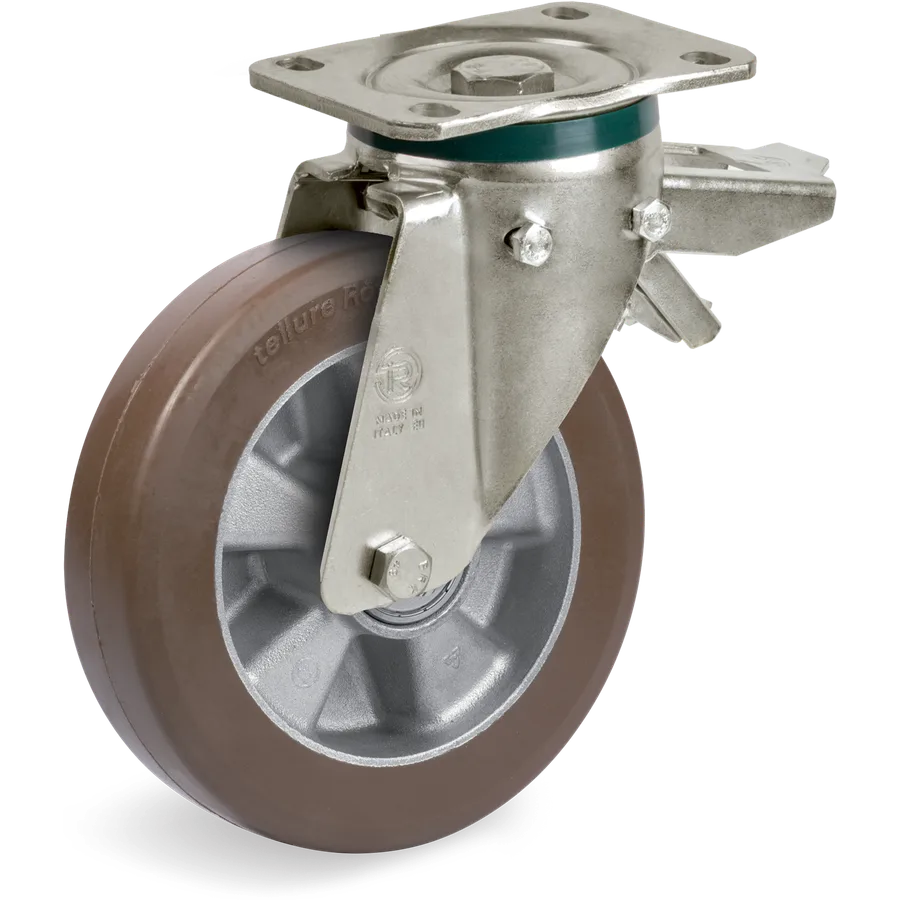

TR-PowerHigh polyurethane swivel castor Ø200×50 mm with brake
Thick-tread TR-PowerHigh polyurethane wheels, aluminium centre
Tellure description: 58HT 200X50 CC SRP/PT+FP R2.0
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 800daN
- Tread
- TR-PowerHigh polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 585536
- Series
- Tellure Rôta 58HT
- Tread
- TR-PowerHigh polyurethane
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 800 daN
- Load at 6 km/h
- 640 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 250 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Rear brake
Other sizes in this family
Thick-tread TR-PowerHigh polyurethane wheels, aluminium centre
3 articles
Similar alternatives
- 654906Series 65HT

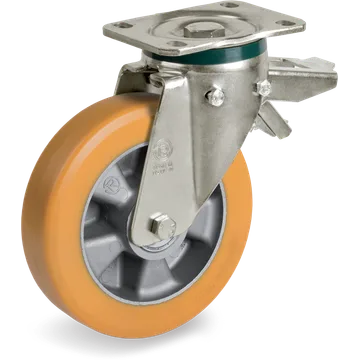

655536Series 65HTTR polyurethane swivel castor Ø200×50 mm with brake
Thick-tread TR polyurethane wheels, aluminium centre
Load capacity: 800 daN

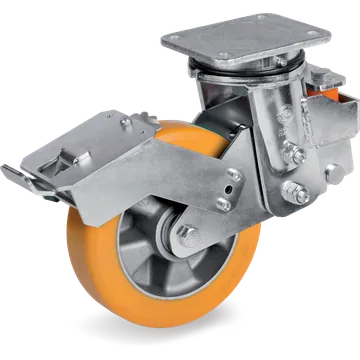

655806Series 65HTTR polyurethane swivel castor Ø200×50 mm with brake
Thick-tread TR polyurethane wheels, aluminium centre
Load capacity: 800 daN

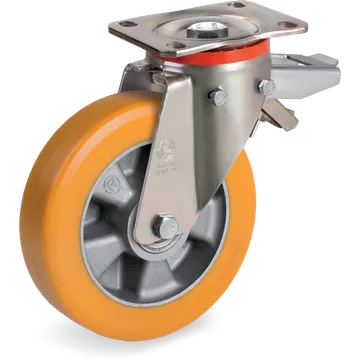

655506Series 65HTTR polyurethane swivel castor Ø200×50 mm with brake
