655335Series 65HTTR polyurethane swivel castor Ø180×50 mm
Thick-tread TR polyurethane wheels, aluminium centre
Load capacity: 750 daN

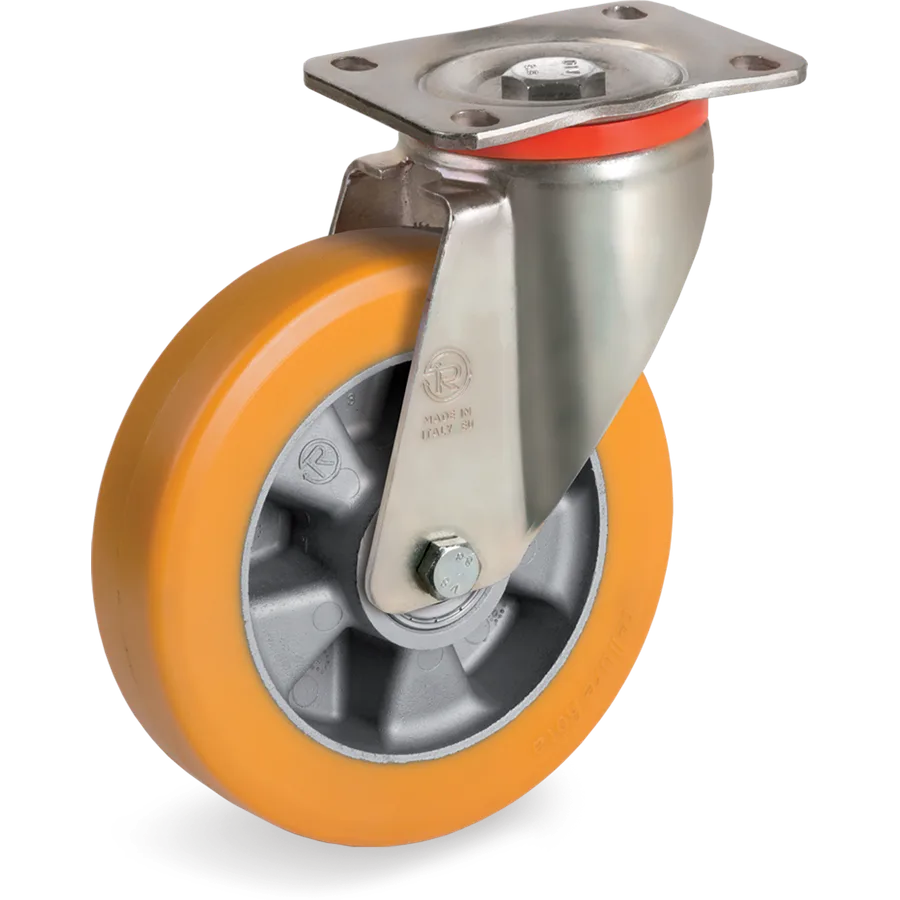

655305Representative image of the familyDrawing dimensions
- DDiameter
- 180 mm
- FWidth
- 50 mm
- HOverall height
- 228 mm
- A×BTop plate (outside)
- 140 × 110 mm
- AA×BBBolt hole spacing
- 105 × 80 mm
- EEBolt hole diameter
- 11 mm
- ESwivel offset
- 70 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.
TR polyurethane swivel castor Ø180×50 mm
Thick-tread TR polyurethane wheels, aluminium centre
Tellure description: 65HT 180X50 CC SRP/P R2.0
- Diameter (D)
- Ø 180mm
- Width (F)
- 50mm
- Load at 4 km/h
- 750daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 655305
- Series
- Tellure Rôta 65HT
- Tread
- TR polyurethane
- Diameter (D)
- 180 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 750 daN
- Load at 6 km/h
- 600 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 228 mm
- Top plate (A × B)
- 140 × 110 mm
- Bolt hole spacing (AA × BB)
- 105 × 80 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Thick-tread TR polyurethane wheels, aluminium centre
6 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 655302 | Ø100×40 mm | 350 daN | C/C 2Z | No | 65HT 100X40 CC SRP/P R1.0 |
| 655303 | Ø125×40 mm | 450 daN | C/C 2Z | No | 65HT 125X40 CC SRP/P R2.0 |
| 655310 | Ø160×50 mm | 700 daN | C/C 2Z | No | 65HT 160X50 CC SRP/P R2.0 |
| 655305 | Ø180×50 mm | 750 daN | C/C 2Z | No | This article |
| 655316 | Ø200×50 mm | 750 daN | C/C 2Z | No | 65HT 200X50 CC SRP/P R2.0 |
| 655318 | Ø250×50 mm | 750 daN | C/C 2Z | No | 65HT 250X50 CC SRP/P R2.0 |
