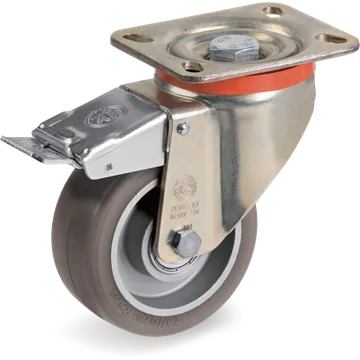

585502Series 58HTTR-PowerHigh polyurethane swivel castor Ø100×40 mm with brake
Thick-tread TR-PowerHigh polyurethane wheels, aluminium centre
Load capacity: 350 daN
655502Representative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 40 mm
- HOverall height
- 138 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 46 mm
- OBrake swing radius
- 123 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

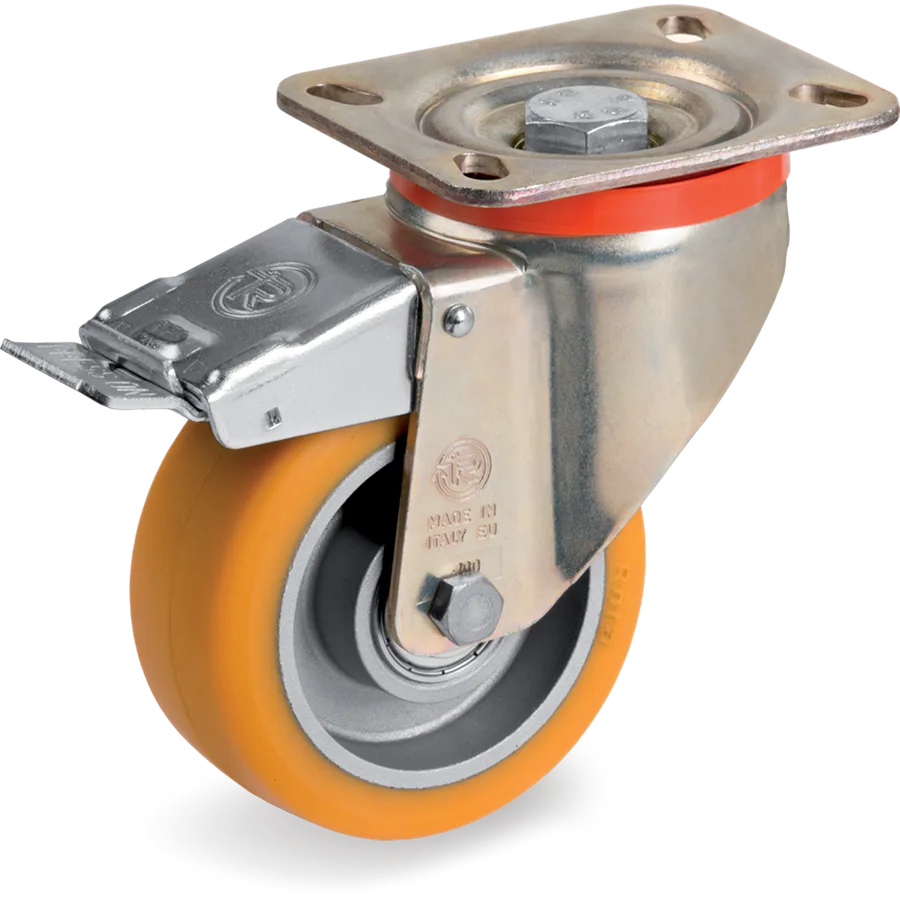

TR polyurethane swivel castor Ø100×40 mm with brake
Thick-tread TR polyurethane wheels, aluminium centre
Tellure description: 65HT 100X40 CC SRP/P+FA R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 40mm
- Load at 4 km/h
- 350daN
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 655502
- Series
- Tellure Rôta 65HT
- Tread
- TR polyurethane
- Diameter (D)
- 100 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 350 daN
- Load at 6 km/h
- 280 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 138 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
