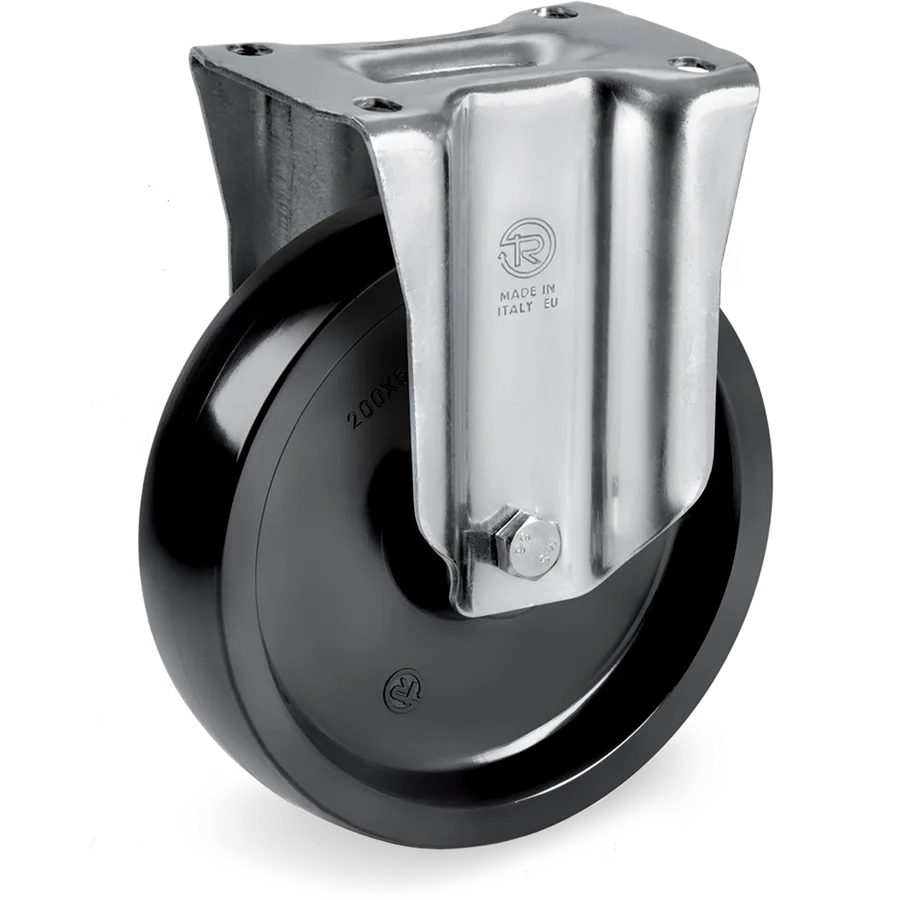

678102Representative image of the familyThermosetting resin fixed castor Ø100×35 mm
Ruedas monobloque en resina termoendurente, soporte fijo NL
Tellure description: 67 100X35 CB SF/NL R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 35mm
- Load at 4 km/h
- 200daN
- Tread
- Thermosetting resin
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 678102
- Series
- Tellure Rôta 67
- Tread
- Thermosetting resin
- Diameter (D)
- 100 mm
- Width (F)
- 35 mm
- Load at 4 km/h
- 200 daN
- Bearing
- Plain bore
Bracket
- Bracket type
- Fixed
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en resina termoendurente, soporte fijo NL
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 678101 | Ø80×35 mm | 150 daN | C/B | No | 67 80X35 CB SF/NL R1.0 |
| 678111 | Ø80×35 mm | 160 daN | C/C 2Z | No | 67 80X35 CC SF/NL R1.0 |
| 678102 | Ø100×35 mm | 200 daN | C/B | No | This article |
| 678112 | Ø100×38 mm | 200 daN | C/C 2Z | No | 67 100X38 CC SF/NL R1.0 |
| 678103 | Ø125×35 mm | 220 daN | C/B | No | 67 125X35 CB SF/NL R1.0 |
| 678304 | Ø150×50 mm | 300 daN | C/B | No | 67 150X50 CB SF/NL R2.0 |
| 678306 | Ø200×50 mm | 300 daN | C/B | No | 67 200X50 CB SF/NL R2.0 |
Similar alternatives
- 677402Series 67
678002Series 67Thermosetting resin fixed castor Ø100×35 mm
Ruedas monobloque en resina termoendurente, soporte fijo NLX con buje PTFE
Load capacity: 200 daN

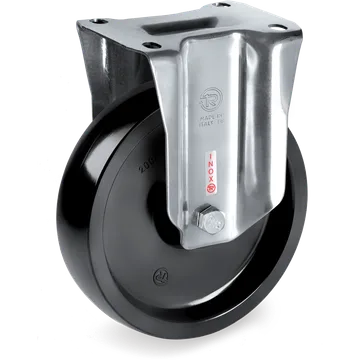

678702Series 67Thermosetting resin fixed castor Ø100×35 mm
Ruedas monobloque en resina termoendurente, soporte fijo NLX
Load capacity: 200 daN

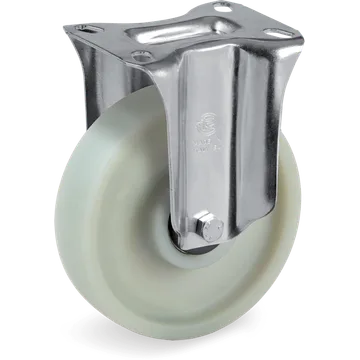

685182Series 68FVPolyamide 6 fixed castor Ø100×30 mm
