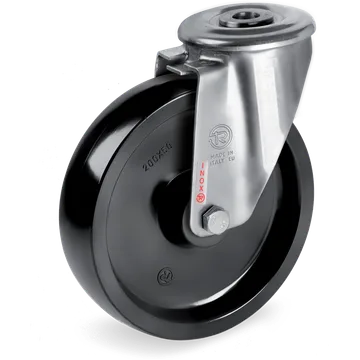

676102Series 67Thermosetting resin swivel castor Ø100×35 mm
Ruedas monobloque en resina termoendurente, soporte giratorio taladro pasador NL
Load capacity: 200 daN

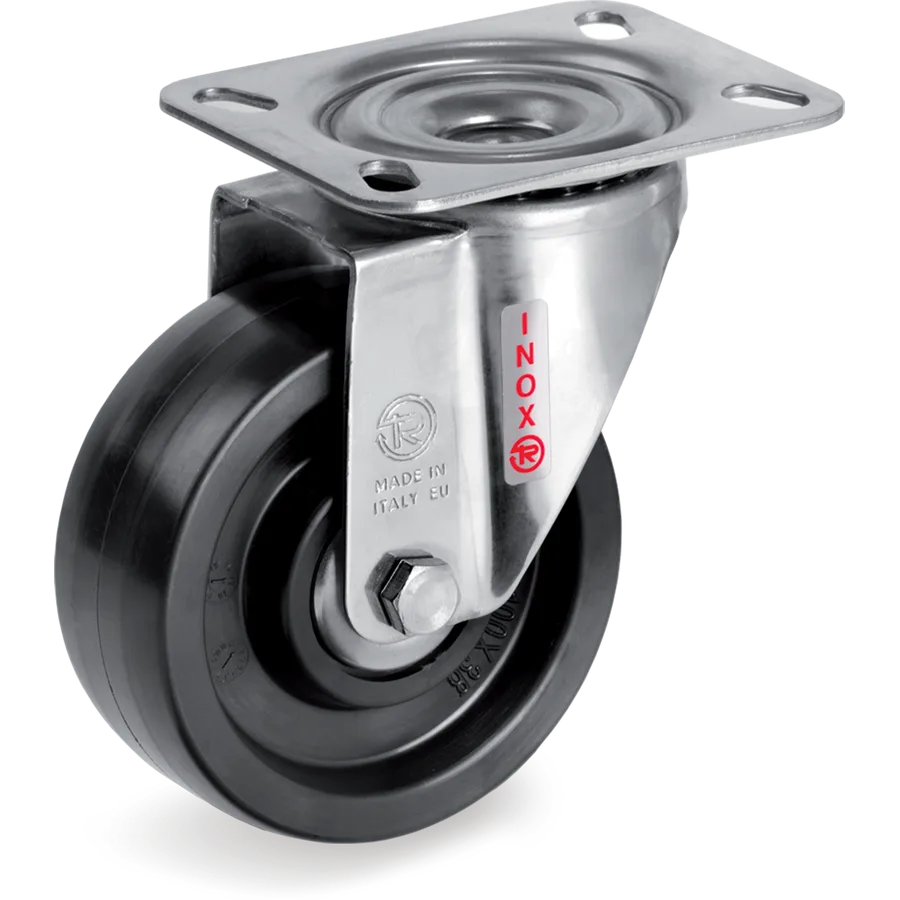

678802Representative image of the familyThermosetting resin swivel castor Ø100×38 mm
Ruedas monobloque en resina termoendurente, soporte giratorio pletina NLX
Tellure description: 67 100X38 CCX SRP/NLX R1.0
- Diameter (D)
- Ø 100mm
- Width (F)
- 38mm
- Load at 4 km/h
- 200daN
- Tread
- Thermosetting resin
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 678802
- Series
- Tellure Rôta 67
- Tread
- Thermosetting resin
- Diameter (D)
- 100 mm
- Width (F)
- 38 mm
- Load at 4 km/h
- 200 daN
- Bearing
- Ball bearings 1Z stainless
Bracket
- Bracket type
- Swivel
- Fitting
- Top plate
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en resina termoendurente, soporte giratorio pletina NLX
7 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 677701 | Ø80×35 mm | 150 daN | C/B | No | 67 80X35 CB SRP/NLX R1.0 |
| 678801 | Ø80×35 mm | 160 daN | C/CX 1Z | No | 67 80X35 CCX SRP/NLX R1.0 |
| 677702 | Ø100×35 mm | 200 daN | C/B | No | 67 100X35 CB SRP/NLX R1.0 |
| 678802 | Ø100×38 mm | 200 daN | C/CX 1Z | No | This article |
| 677713 | Ø125×35 mm | 220 daN | C/B | No | 67 125X35 CB SRP/NLX R1.0 |
| 677704 | Ø150×50 mm | 300 daN | C/B | No | 67 150X50 CB SRP/NLX R2.0 |
| 677706 | Ø200×50 mm | 300 daN | C/B | No | 67 200X50 CB SRP/NLX R2.0 |
