685983Representative image of the familyDrawing dimensions
- DDiameter
- 125 mm
- FWidth
- 30 mm
- HOverall height
- 156 mm
- GPlate diameter
- 73 mm
- GGThrough-hole diameter
- 12 mm
- ESwivel offset
- 37 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

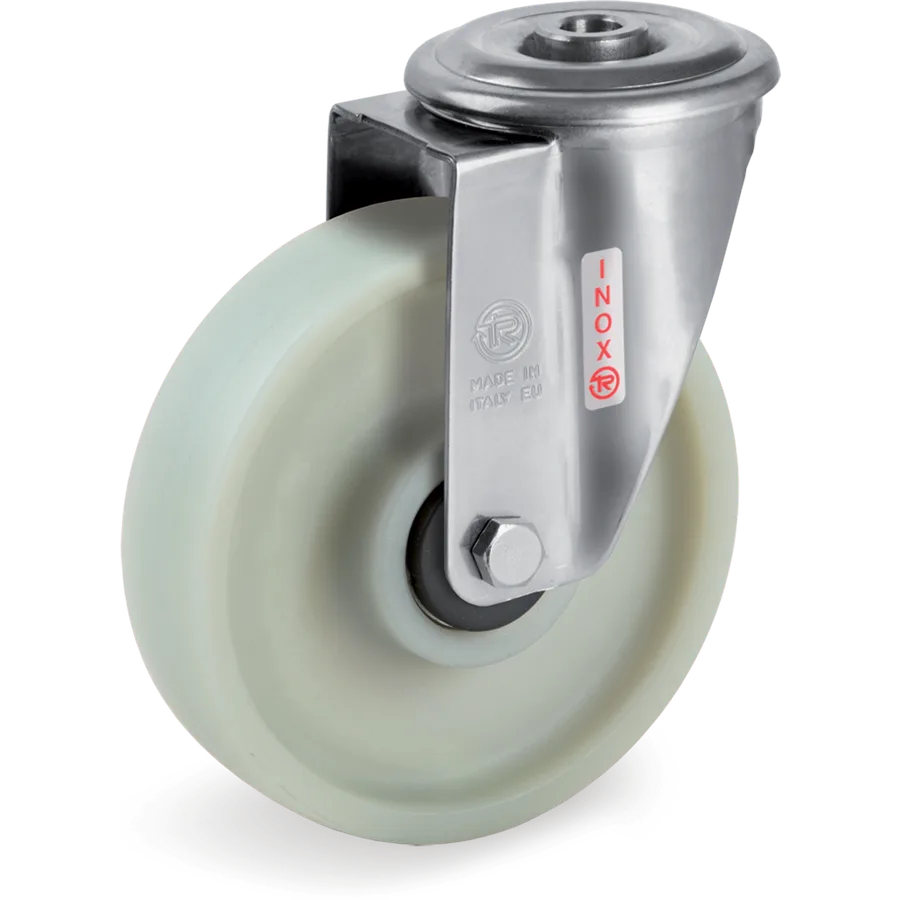

Polyamide 6 swivel castor Ø125×30 mm
One-piece glass-fibre reinforced polyamide 6 wheels
Tellure description: 68FV 125X30 CCX SRF/NLX C1
- Diameter (D)
- Ø 125mm
- Width (F)
- 30mm
- Load at 4 km/h
- 220daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 685983
- Series
- Tellure Rôta 68FV
- Tread
- Polyamide 6
- Diameter (D)
- 125 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 220 daN
- Bearing
- Ball bearings 2RS stainless
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 156 mm
- Fitting
- Bolt hole
- Bracket material
- Stainless steel
- Brake
- No
Other sizes in this family
One-piece glass-fibre reinforced polyamide 6 wheels
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 685982 | Ø100×30 mm | 220 daN | C/CX 2RS | No | 68FV 100X30 CCX SRF/NLX C1 |
| 685983 | Ø125×30 mm | 220 daN | C/CX 2RS | No | This article |
