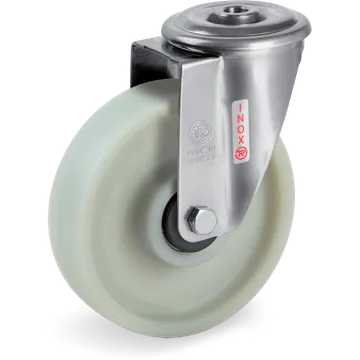

684682Series 68FVPolyamide 6 swivel castor Ø100×30 mm
Ruedas monobloque en poliamida 6 reforzado con fibra de vidrio, soporte giratorio pletina NLX
Load capacity: 220 daN

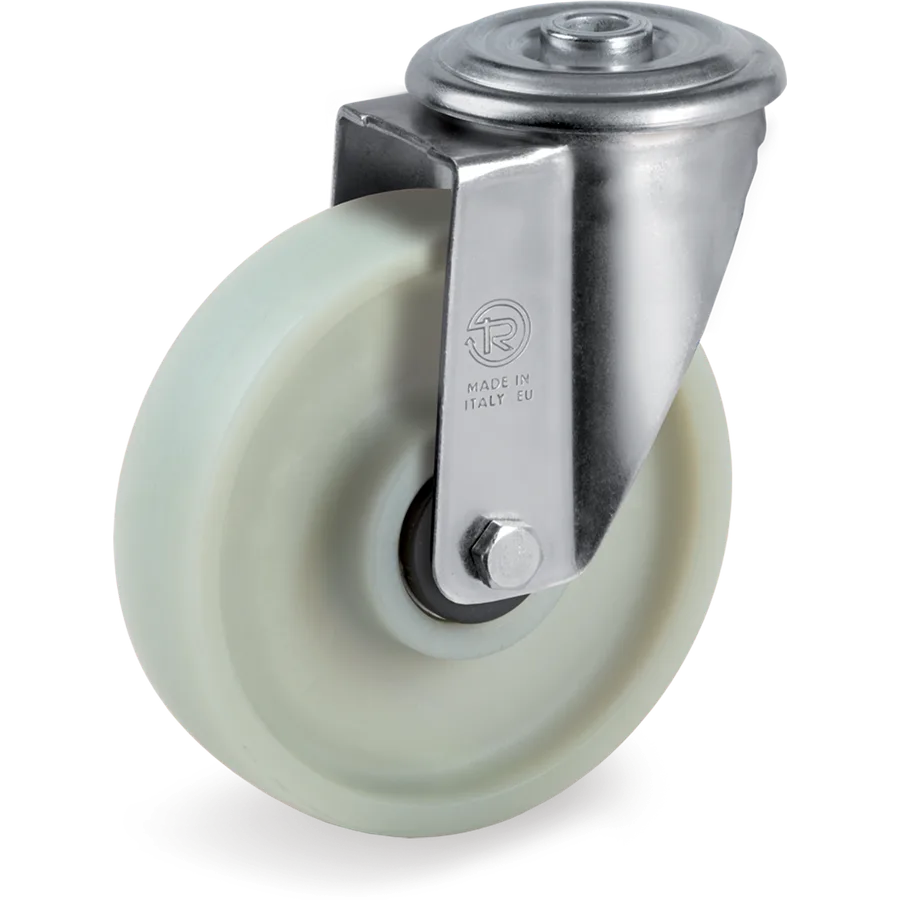

688082Representative image of the familyPolyamide 6 swivel castor Ø100×30 mm
Ruedas monobloque en poliamida 6 reforzado con fibra de vidrio, soporte giratorio taladro pasador NL
Tellure description: 68FV 100X30 CC SRF/NL C1
- Diameter (D)
- Ø 100mm
- Width (F)
- 30mm
- Load at 4 km/h
- 220daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 688082
- Series
- Tellure Rôta 68FV
- Tread
- Polyamide 6
- Diameter (D)
- 100 mm
- Width (F)
- 30 mm
- Load at 4 km/h
- 220 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- No
Other sizes in this family
Ruedas monobloque en poliamida 6 reforzado con fibra de vidrio, soporte giratorio taladro pasador NL
2 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 688082 | Ø100×30 mm | 220 daN | C/C 2Z | No | This article |
| 688083 | Ø125×30 mm | 220 daN | C/C 2Z | No | 68FV 125X30 CC SRF/NL C1 |
Similar alternatives
- 684682Series 68FV

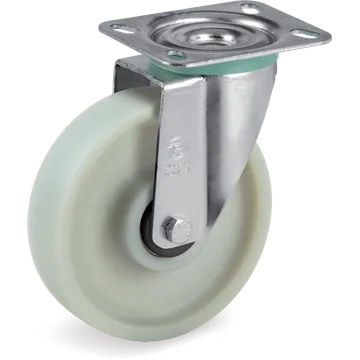

684882Series 68FVPolyamide 6 swivel castor Ø100×30 mm
Ruedas monobloque en poliamida 6 reforzado con fibra de vidrio, soporte giratorio pletina NL
Load capacity: 220 daN

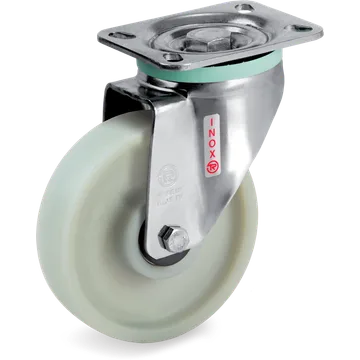

685982Series 68FVPolyamide 6 swivel castor Ø100×30 mm
