727162PFSeries 72GSSilicone rubber swivel castor Ø100×40 mm with brake
Silicone rubber wheels for high temperatures, aluminium centre
Load capacity: 80 daN
727152PFRepresentative image of the familyDrawing dimensions
- DDiameter
- 100 mm
- FWidth
- 40 mm
- HOverall height
- 128 mm
- A×BTop plate (outside)
- 100 × 85 mm
- AA×BBBolt hole spacing
- 80 × 60 mm
- EEBolt hole diameter
- 9 mm
- ESwivel offset
- 35 mm
- OBrake swing radius
- 120 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

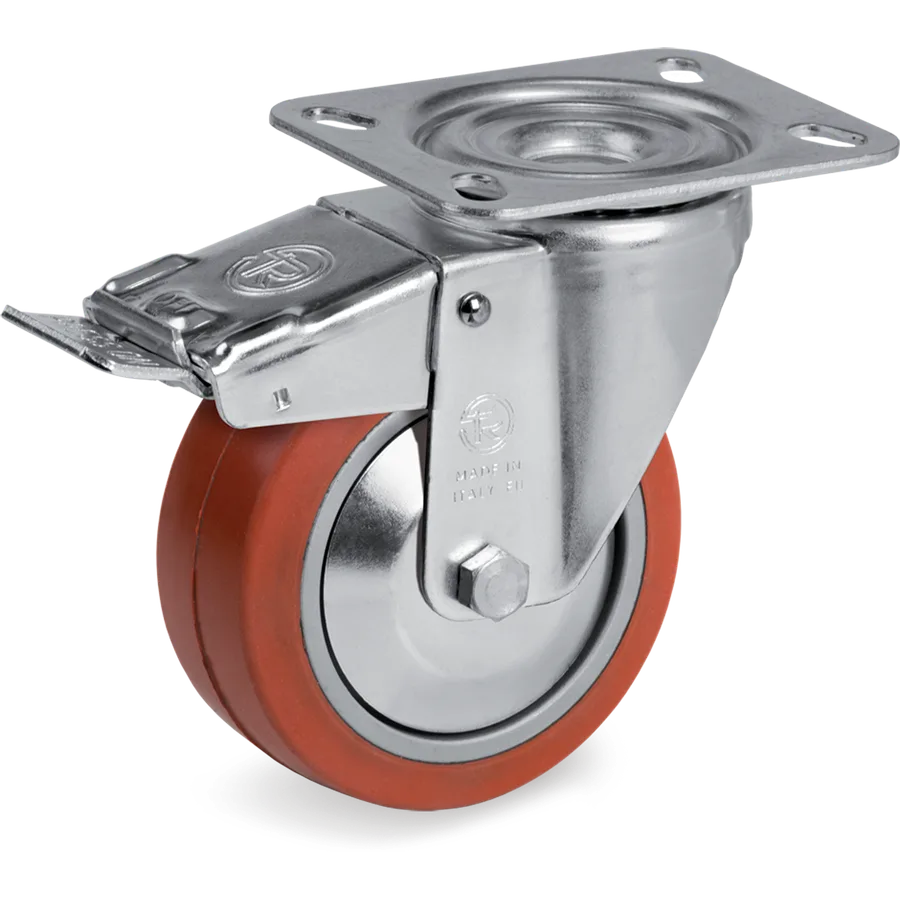

Silicone rubber swivel castor Ø100×40 mm with brake
Silicone rubber wheels for high temperatures, aluminium centre
Tellure description: 72GS 100X40 CC SRP/NL+FA R1.0+PF
- Diameter (D)
- Ø 100mm
- Width (F)
- 40mm
- Load at 4 km/h
- 80daN
- Tread
- Silicone rubber
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 727152PF
- Series
- Tellure Rôta 72GS
- Tread
- Silicone rubber
- Diameter (D)
- 100 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 80 daN
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 128 mm
- Top plate (A × B)
- 100 × 85 mm
- Bolt hole spacing (AA × BB)
- 80 × 60 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
Similar alternatives
- 727162PFSeries 72GS

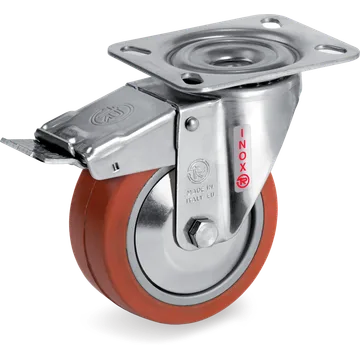

727452PFSeries 72GSSilicone rubber swivel castor Ø100×40 mm with brake
Silicone rubber wheels for high temperatures, aluminium centre
Load capacity: 80 daN

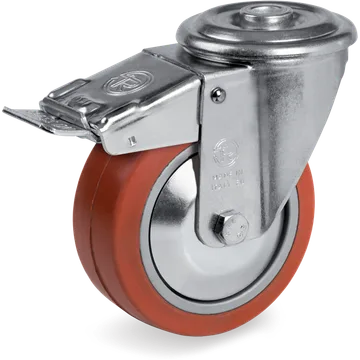

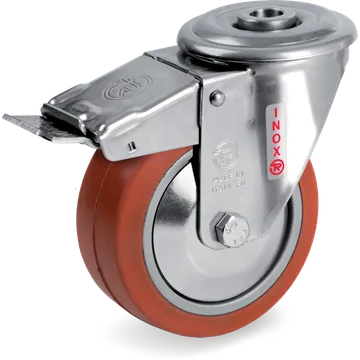

727462PFSeries 72GSSilicone rubber swivel castor Ø100×40 mm with brake
Silicone rubber wheels for high temperatures, aluminium centre
Load capacity: 80 daN

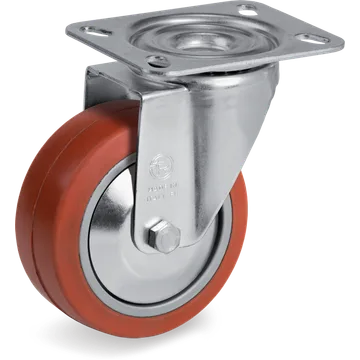

724452PFSeries 72GSSilicone rubber swivel castor Ø100×40 mm
