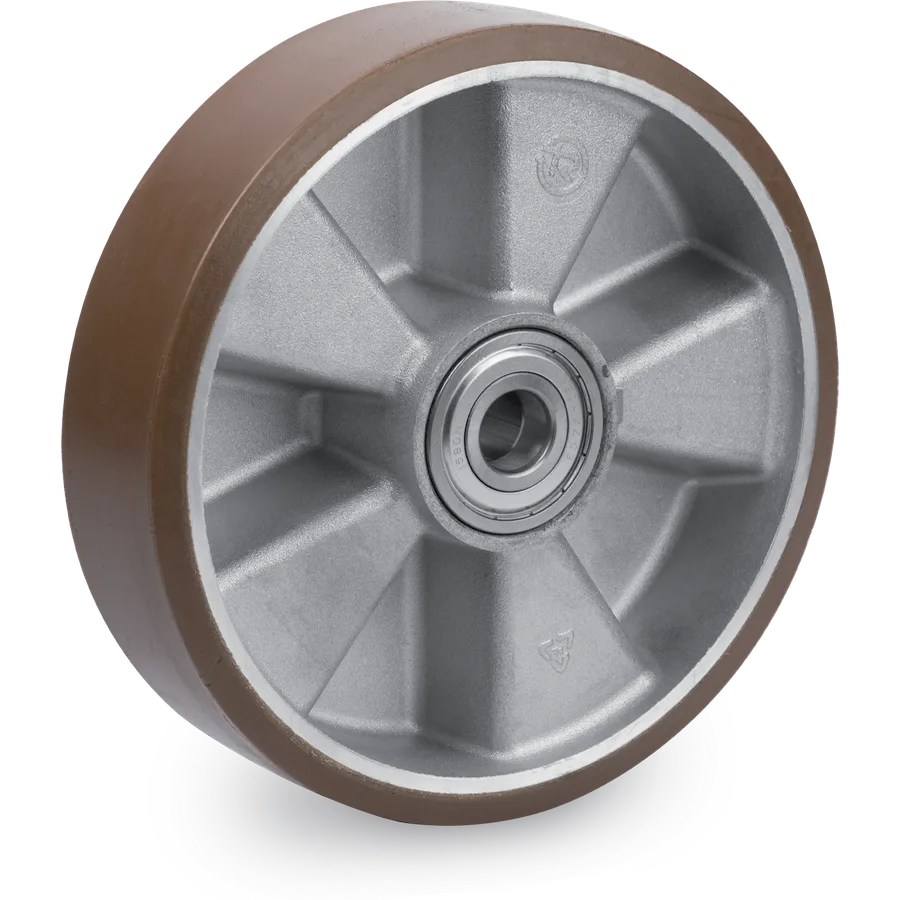

Tellure Rôta 582003 – TR-PowerHigh polyurethane wheel Ø125×35 mm582003Representative image of the family
Tellure RôtaCode 582003Series 58AL

TR-PowerHigh polyurethane wheel Ø125×35 mm

Ruedas en poliuretano TR-PowerHigh, núcleo en aluminio

Tellure description: 58AL 125X35 CC F12 LM40

Diameter (D)
Ø 125mm
Width (F)
35mm
Load at 4 km/h
400daN
Tread
TR-PowerHigh polyurethane

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
582003
Series
Tellure Rôta 58AL
Tread
TR-PowerHigh polyurethane
Diameter (D)
125 mm
Width (F)
35 mm
Load at 4 km/h
400 daN
Load at 6 km/h
320 daN
Static load
500 daN
Bearing
Ball bearings 2Z
Bore diameter (DD)
12 mm
Hub length (L)
40 mm
Seat diameter (LL)
32 mm
Bearing seat depth (M)
10 mm

Other sizes in this family

Ruedas en poliuretano TR-PowerHigh, núcleo en aluminio

8 articles

CodeØ × FLoad capacityBearingBrakeTellure description
582002Ø100×30 mm250 daNC/C 2Z—58AL 100X30 CC F12 LM40
583102Ø100×30 mm250 daNS/C—58AL 100X30 SC 32X10 LM40
582003Ø125×35 mm400 daNC/C 2Z—This article
583103Ø125×35 mm400 daNS/C—58AL 125X35 SC 32X10 LM40
582014Ø160×50 mm800 daNC/C 2Z—58AL 160X50 CC F20 LM58
583114Ø160×50 mm800 daNS/C—58AL 160X50 SC 47X14 LM58
582006Ø200×50 mm850 daNC/C 2Z—58AL 200X50 CC F20 LM55
583106Ø200×50 mm850 daNS/C—58AL 200X50 SC 52X15 LM55
