622106Series 62ALTR-Roll polyurethane wheel Ø200×50 mm
Ruedas de poliuretano TR-ROLL, núcleo de aluminio
Load capacity: 700 daN

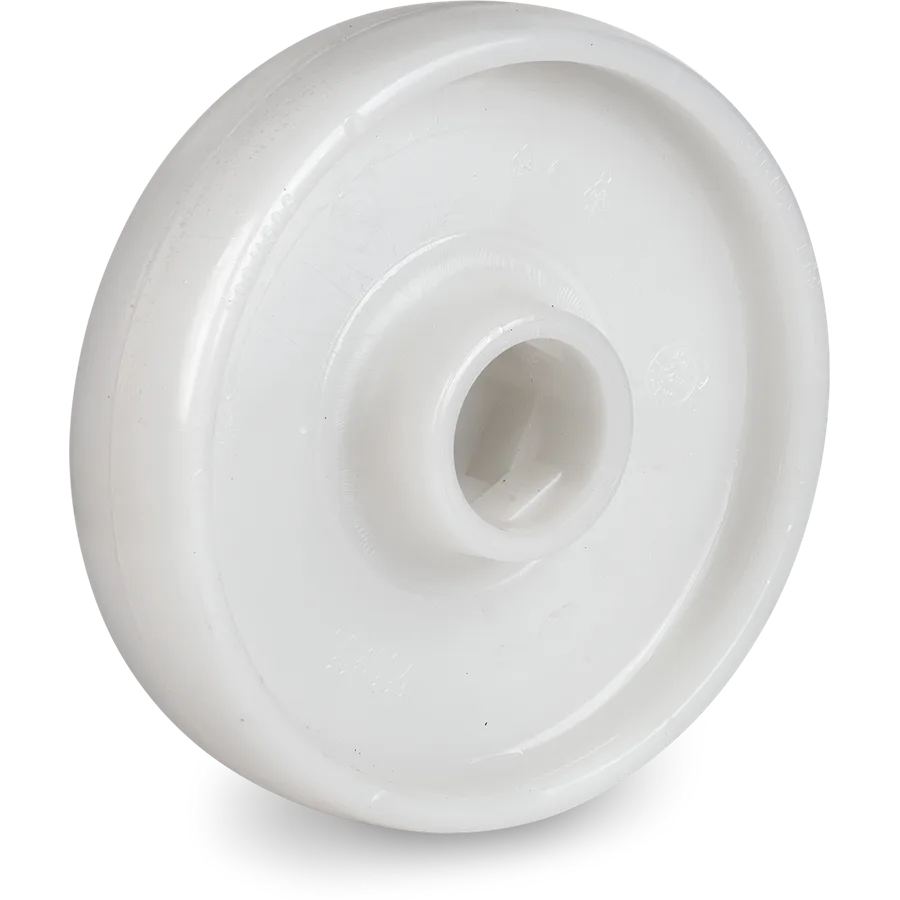

682106Representative image of the familyPolyamide 6 wheel Ø200×50 mm
Ruedas monobloque en poliamida 6
Tellure description: 68 200X50 SC 47X14 LM59
- Diameter (D)
- Ø 200mm
- Width (F)
- 50mm
- Load at 4 km/h
- 730daN
- Tread
- Polyamide 6
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 682106
- Series
- Tellure Rôta 68
- Tread
- Polyamide 6
- Diameter (D)
- 200 mm
- Width (F)
- 50 mm
- Load at 4 km/h
- 730 daN
- Static load
- 800 daN
- Bearing
- Bearing housing
- Hub length (L)
- 60 mm
- Seat diameter (LL)
- 47 mm
- Bearing seat depth (M)
- 14 mm
Other sizes in this family
Ruedas monobloque en poliamida 6
31 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 681100 | Ø65×30 mm | 120 daN | C/B | — | 68 65X30 CB F12 LM34 |
| 681111 | Ø80×30 mm | 180 daN | C/B | — | 68 80X30 CB F12 LM39 |
| 683101 | Ø80×30 mm | 180 daN | C/R | — | 68 80X30 CR F12 LM34 |
| 683111 | Ø80×30 mm | 180 daN | C/R | — | 68 80X30 CR F12 LM39 |
| 683201 | Ø80×30 mm | 180 daN | C/RX | — | 68 80X30 CRX F12 LM34 |
| 683211 | Ø80×30 mm | 180 daN | C/RX | — | 68 80X30 CRX F12 LM39 |
| 681102 | Ø100×30 mm | 300 daN | C/B | — | 68 100X30 CB F12 LM34 |
| 681112 | Ø100×30 mm | 300 daN | C/B | — | 68 100X30 CB F12 LM44 |
| 683102 | Ø100×30 mm | 300 daN | C/R | — | 68 100X30 CR F12 LM34 |
| 683112 | Ø100×30 mm | 300 daN | C/R | — | 68 100X30 CR F12 LM44 |
| 683202 | Ø100×30 mm | 300 daN | C/RX | — | 68 100X30 CRX F12 LM34 |
| 683212 | Ø100×30 mm | 300 daN | C/RX | — | 68 100X30 CRX F12 LM44 |
| 681103 | Ø125×38 mm | 400 daN | C/B | — | 68 125X38 CB F15 LM44 |
| 683103 | Ø125×38 mm | 400 daN | C/R | — | 68 125X38 CR F15 LM44 |
| 683203 | Ø125×38 mm | 400 daN | C/RX | — | 68 125X38 CRX F15 LM44 |
| 681104 | Ø150×45 mm | 500 daN | C/B | — | 68 150X45 CB F20 LM59 |
| 683104 | Ø150×45 mm | 500 daN | C/R | — | 68 150X45 CR F20 LM59 |
| 683204 | Ø150×45 mm | 500 daN | C/RX | — | 68 150X45 CRX F20 LM59 |
| 681105 | Ø175×45 mm | 630 daN | C/B | — | 68 175X45 CB F20 LM59 |
| 683105 | Ø175×45 mm | 630 daN | C/R | — | 68 175X45 CR F20 LM59 |
| 683205 | Ø175×45 mm | 630 daN | C/RX | — | 68 175X45 CRX F20 LM59 |
| 681106 | Ø200×50 mm | 730 daN | C/B | — | 68 200X50 CB F20 LM59 |
| 682106 | Ø200×50 mm | 730 daN | S/C | — | This article |
| 683106 | Ø200×50 mm | 730 daN | C/R | — | 68 200X50 CR F20 LM59 |
| 683116 | Ø200×50 mm | 730 daN | C/R | — | 68 200X50 CR F25 LM59 |
| 683206 | Ø200×50 mm | 730 daN | C/RX | — | 68 200X50 CRX F20 LM59 |
| 683216 | Ø200×50 mm | 730 daN | C/RX | — | 68 200X50 CRX F25 LM59 |
| 683306 | Ø200×50 mm | 730 daN | C/C 2Z | — | 68 200X50 CC F20 LM59 |
| 683316 | Ø200×50 mm | 730 daN | C/C 2Z | — | 68 200X50 CC F25 LM59 |
| 681108 | Ø250×60 mm | 1,200 daN | C/B | — | 68 250X60 CB F25 LM88 |
| 683108 | Ø250×60 mm | 1,200 daN | C/R | — | 68 250X60 CR F25 LM88 |
