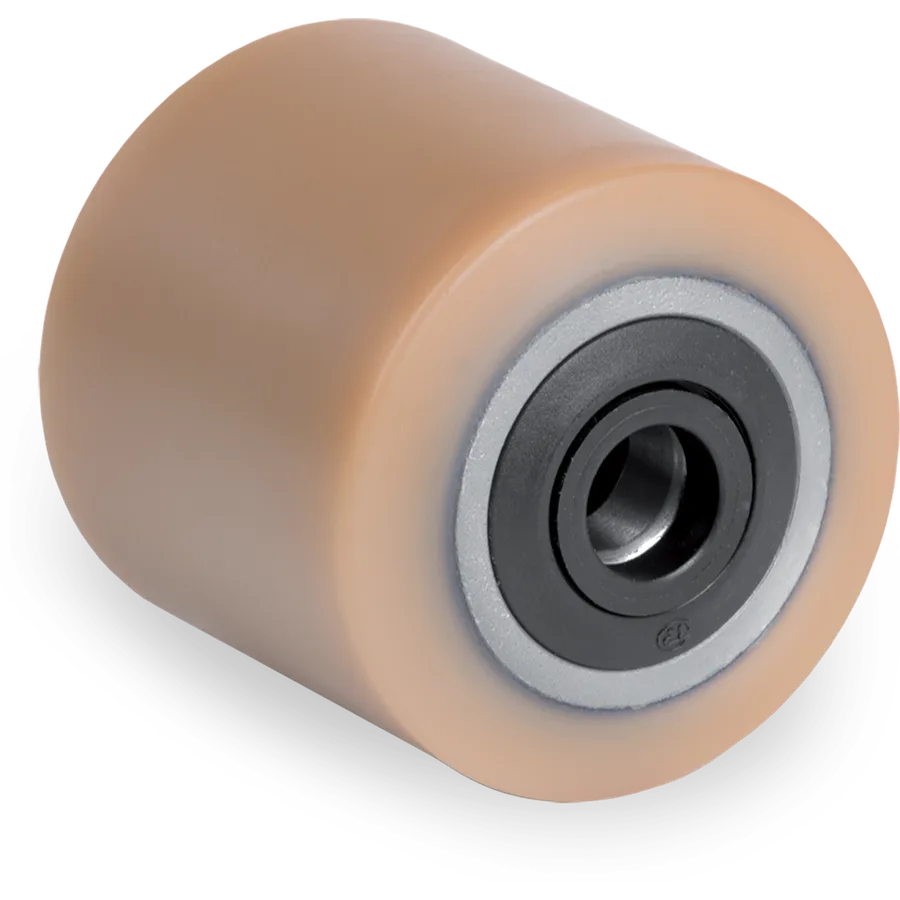

Tellure Rôta 743202 – Vulkollan® roller Ø80×85 mm743202Representative image of the family
Tellure RôtaCode 743202Series 74

Vulkollan® roller Ø80×85 mm

Rodillos transpaleta en poliuretano Vulkollan®, núcleo en acero con laberintos

Tellure description: 74 80X85 CC+LAB F20 LC90

Diameter (D)
Ø 80mm
Width (F)
85mm
Load at 4 km/h
850daN
Tread
Vulkollan®

Price on request

Add it to your cart and request a quote: pricing depends on customer profile and volume.

Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)

Questions about this article?

926 550 642Contact →

Genuine Tellure Rôta product · Made in Italy

Technical specifications

Wheel

Code
743202
Series
Tellure Rôta 74
Tread
Vulkollan®
Diameter (D)
80 mm
Width (F)
85 mm
Load at 4 km/h
850 daN
Load at 6 km/h
680 daN
Static load
1,130 daN
Bearing
Ball bearings 2Z
Bore diameter (DD)
20 mm
Hub length (L)
85 mm
Seat diameter (LL)
47 mm
Bearing seat depth (M)
20.5 mm

Other sizes in this family

Rodillos transpaleta en poliuretano Vulkollan®, núcleo en acero con laberintos

7 articles

CodeØ × FLoad capacityBearingBrakeTellure description
743201Ø80×65 mm650 daNC/C 2Z—74 80X65 CC+LAB F20 LC70
743202Ø80×85 mm850 daNC/C 2Z—This article
743203Ø85×65 mm750 daNC/C 2Z—74 85X65 CC+LAB F20 LC70
743204Ø85×75 mm750 daNC/C 2Z—74 85X75 CC+LAB F20 LC80
743224Ø85×75 mm750 daNC/C 2Z—74 85X75 CC+LAB F25 LC80
743205Ø85×85 mm850 daNC/C 2Z—74 85X85 CC+LAB F20 LC90
743206Ø85×95 mm950 daNC/C 2Z—74 85X95 CC+LAB F20 LC100
