792121Series 79TR-Roll polyurethane roller Ø82×60 mm
Rodillos transpaleta en poliuretano TR-ROLL, núcleo en acero
Load capacity: 400 daN

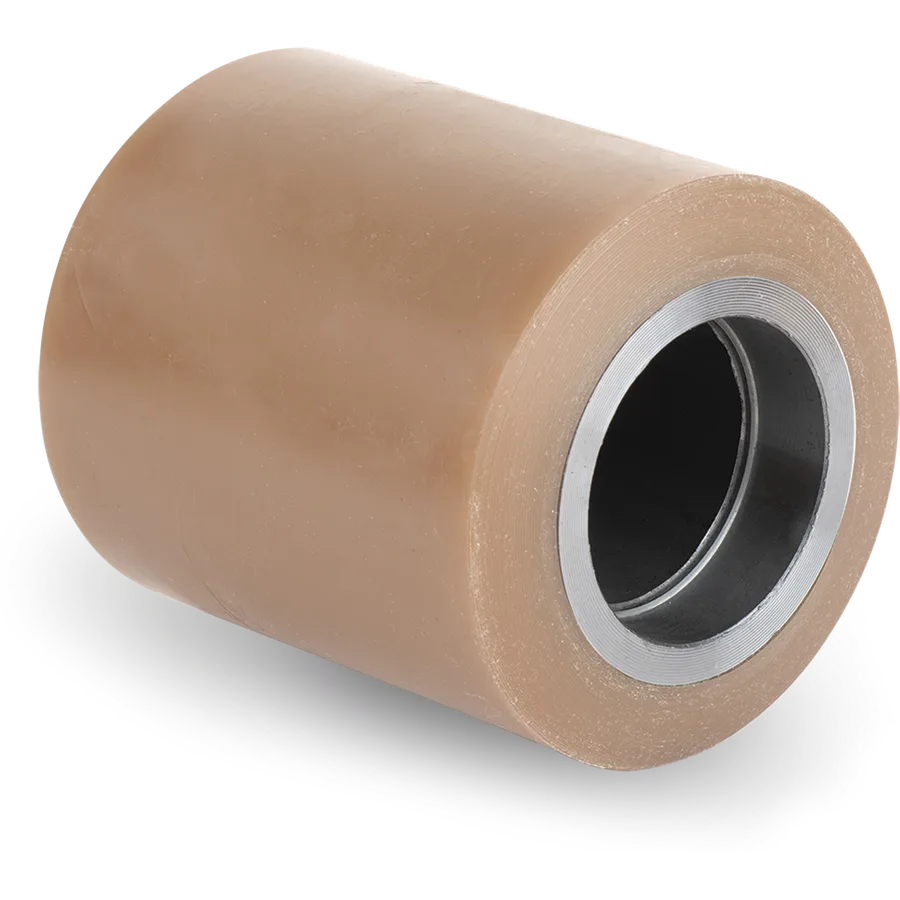

744121Representative image of the familyVulkollan® roller Ø85×40 mm
Rodillos transpaleta en poliuretano Vulkollan®, núcleo en acero
Tellure description: 74 85X40 SC 47X14
- Diameter (D)
- Ø 85mm
- Width (F)
- 40mm
- Load at 4 km/h
- 400daN
- Tread
- Vulkollan®
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 744121
- Series
- Tellure Rôta 74
- Tread
- Vulkollan®
- Diameter (D)
- 85 mm
- Width (F)
- 40 mm
- Load at 4 km/h
- 400 daN
- Load at 6 km/h
- 320 daN
- Static load
- 575 daN
- Bearing
- Bearing housing
- Hub length (L)
- 40 mm
- Seat diameter (LL)
- 47 mm
- Bearing seat depth (M)
- 14 mm
Other sizes in this family
Rodillos transpaleta en poliuretano Vulkollan®, núcleo en acero
16 articles
| Code | Ø × F | Load capacity | Bearing | Brake | Tellure description |
|---|---|---|---|---|---|
| 742202 | Ø80×70 mm | 700 daN | C/C 2Z | — | 74 80X70 CC F20 LC70 |
| 744202 | Ø80×70 mm | 700 daN | S/C | — | 74 80X70 SC 47X14 |
| 742105 | Ø80×90 mm | 900 daN | C/C 2Z | — | 74 80X90 CC F20 LC90 |
| 744105 | Ø80×90 mm | 900 daN | S/C | — | 74 80X90 SC 47X14 |
| 742121 | Ø85×40 mm | 400 daN | C/C 2Z | — | 74 85X40 CC F20 LC40 |
| 744121 | Ø85×40 mm | 400 daN | S/C | — | This article |
| 742122 | Ø85×70 mm | 700 daN | C/C 2Z | — | 74 85X70 CC F20 LC70 |
| 744122 | Ø85×70 mm | 700 daN | S/C | — | 74 85X70 SC 47X14 |
| 742123 | Ø85×80 mm | 800 daN | C/C 2Z | — | 74 85X80 CC F20 LC80 |
| 742224 | Ø85×80 mm | 800 daN | C/C 2Z | — | 74 85X80 CC F25 LC80 |
| 744123 | Ø85×80 mm | 800 daN | S/C | — | 74 85X80 SC 47X14 |
| 744224 | Ø85×80 mm | 800 daN | S/C | — | 74 85X80 SC 52X15 |
| 742125 | Ø85×90 mm | 900 daN | C/C 2Z | — | 74 85X90 CC F20 LC90 |
| 744125 | Ø85×90 mm | 900 daN | S/C | — | 74 85X90 SC 47X14 |
| 742127 | Ø85×100 mm | 1,000 daN | C/C 2Z | — | 74 85X100 CC F20 LC100 |
| 744127 | Ø85×100 mm | 1,000 daN | S/C | — | 74 85X100 SC 47X14 |
Similar alternatives
- 792121Series 79
752121Series 75TR polyurethane roller Ø85×40 mm
Rodillos transpaleta en poliuretano "TR", núcleo en acero
Load capacity: 350 daN
772132Series 77TR polyurethane roller Ø82×70 mm
Rodillos transpaleta en poliuretano "TR", núcleo en poliamida 6
Load capacity: 450 daN
782101Series 78Thermoplastic polyurethane roller Ø82×60 mm
Rodillos transpaleta en poliuretano inyectado TPU 60D, núcleo en poliamida 6
Load capacity: 450 daN
