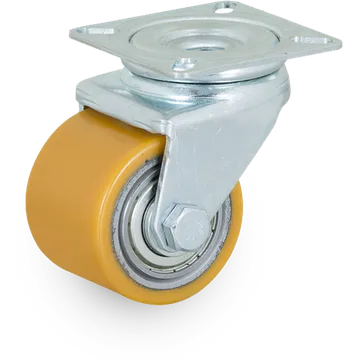

757300Series 75
757400Representative image of the familyDrawing dimensions
- DDiameter
- 35 mm
- FWidth
- 27 mm
- HOverall height
- 53 mm
- A×BTop plate (outside)
- 60 × 60 mm
- AA×BBBolt hole spacing
- 45 × 45 mm
- EEBolt hole diameter
- 6 mm
- ESwivel offset
- 17 mm
- OBrake swing radius
- 70 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

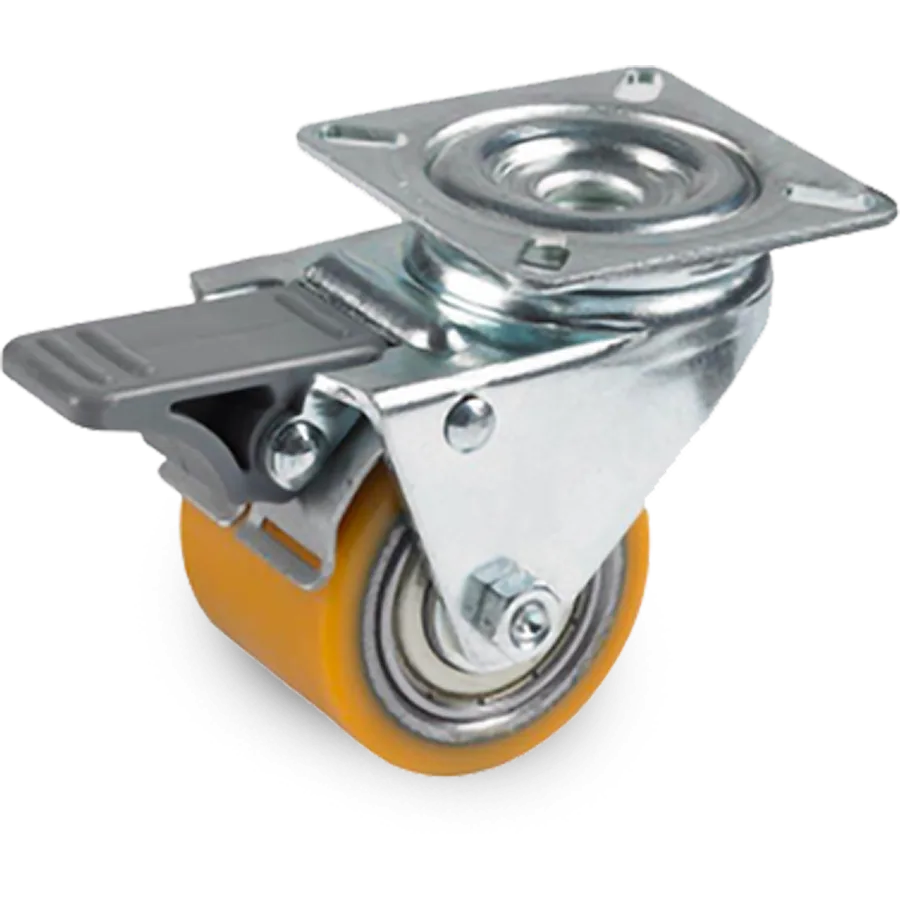

TR polyurethane roller Ø35×27 mm with brake
TR polyurethane pallet truck rollers, steel centre
Tellure description: 75 35X27 CC SRP+FA S3.0
- Diameter (D)
- Ø 35mm
- Width (F)
- 27mm
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 757400
- Series
- Tellure Rôta 75
- Tread
- TR polyurethane
- Diameter (D)
- 35 mm
- Width (F)
- 27 mm
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 53 mm
- Top plate (A × B)
- 60 × 60 mm
- Bolt hole spacing (AA × BB)
- 45 × 45 mm
- Fitting
- Top plate
- Bracket material
- Galvanised steel
- Brake
- Yes
- Brake type
- Front brake
