757401Series 75TR polyurethane roller Ø50×40 mm with brake
TR polyurethane pallet truck rollers, steel centre
Load: on request
757501Representative image of the familyDrawing dimensions
- DDiameter
- 50 mm
- FWidth
- 40 mm
- HOverall height
- 71 mm
- GPlate diameter
- 55 mm
- GGThrough-hole diameter
- 10 mm
Letters as on the drawing. Dimensions from the Tellure Rôta datasheet.

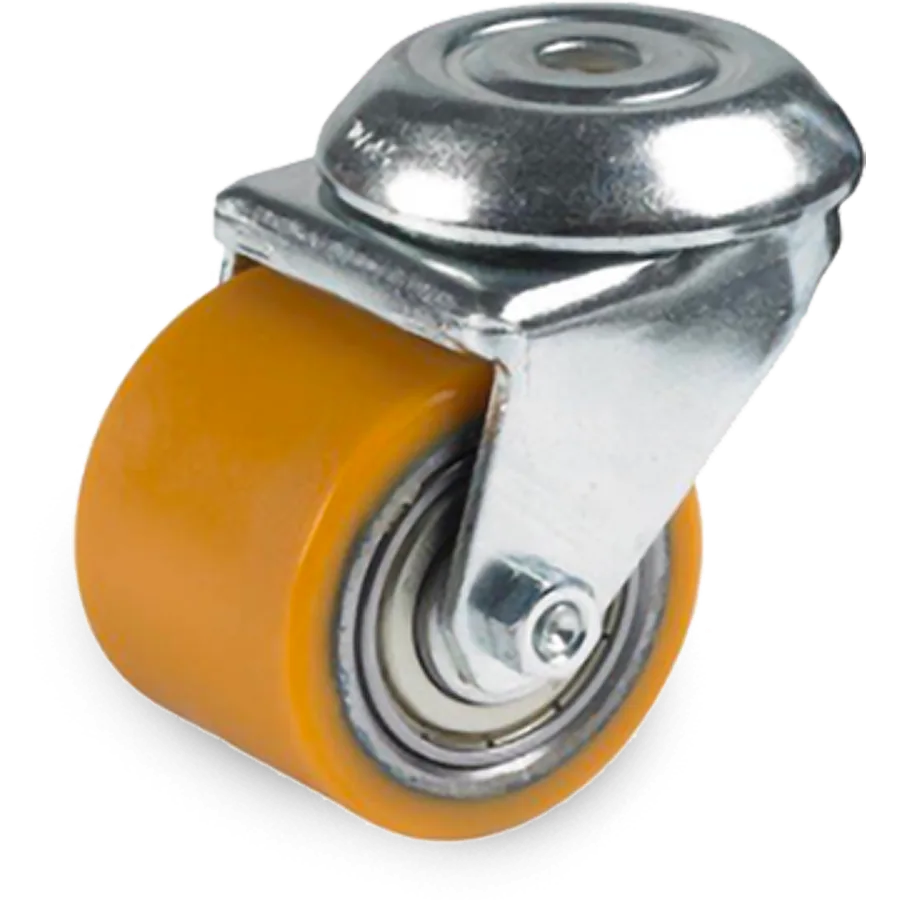

TR polyurethane roller Ø50×40 mm
TR polyurethane pallet truck rollers, steel centre
Tellure description: 75 50X40 CC SRF 10
- Diameter (D)
- Ø 50mm
- Width (F)
- 40mm
- Tread
- TR polyurethane
Price on request
Add it to your cart and request a quote: pricing depends on customer profile and volume.
Datasheet (PDF)Official Tellure Rôta datasheet (Spanish)
Questions about this article?
Genuine Tellure Rôta product · Made in Italy
Technical specifications
Wheel
- Code
- 757501
- Series
- Tellure Rôta 75
- Tread
- TR polyurethane
- Diameter (D)
- 50 mm
- Width (F)
- 40 mm
- Bearing
- Ball bearings 2Z
Bracket
- Bracket type
- Swivel
- Overall height (H)
- 71 mm
- Fitting
- Bolt hole
- Bracket material
- Galvanised steel
- Brake
- No
